| Components |

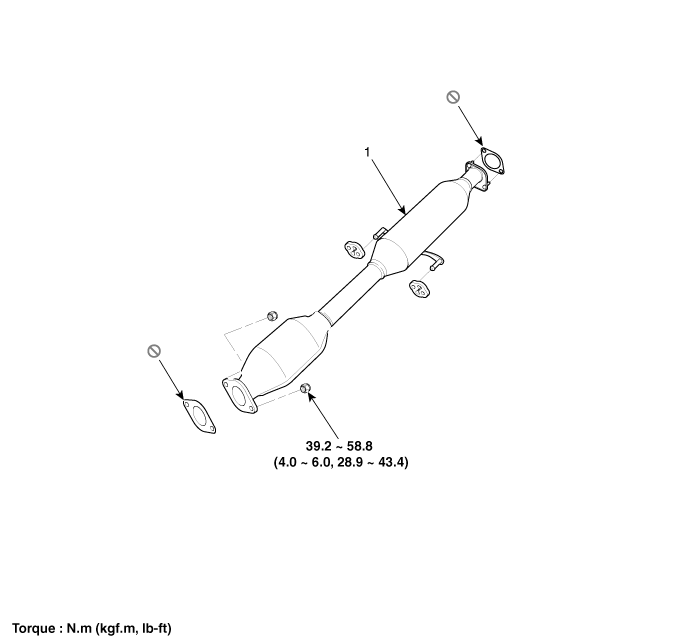

| 1. Catalytic converter & center muffler assembly |
Front Muffler Repair procedures
Removal and Installation
1.
Disconnect the battery negative terminal.
2.
Remove the engine room under cover.
3.
Disconnect the heated oxygen sensor (HO2S) connector.
(Refer to Fuel Sys ...
Center Muffler Repair procedures
Removal and Installation
1.
Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "Battery")
2.
Remove the catalytic converter & center muffler assembly (A).
...
