| Components |

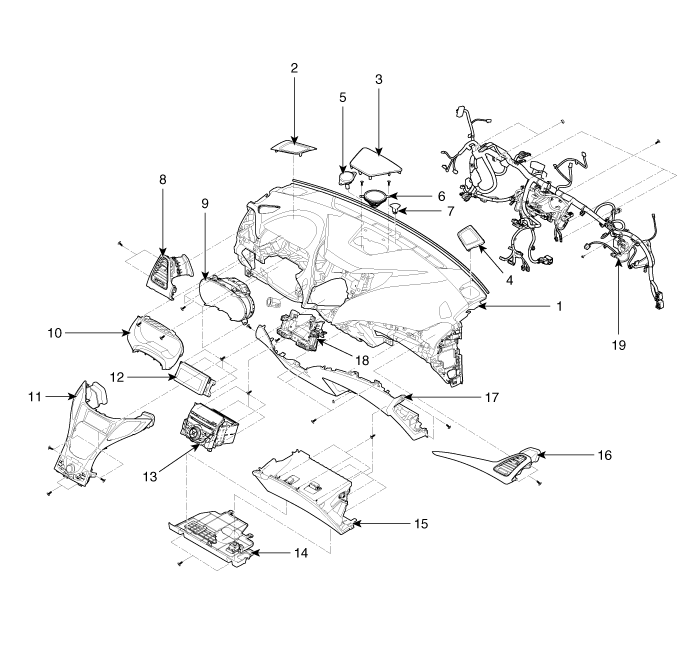

| 1. Main crash pad assembly 2. Side speaker grille [LH] 3. Center speaker grille 4. Side speaker grille [RH] 5. Alarm speaker assembly 6. Center speaker assembly 7. Photo sensor | 8. Crash pad garnish [LH] 9. Cluster assembly 10. Cluster fascia panel 11. Center facia panel 12. Front monitor assembly 13. Audio assembly 14. Under cover assembly | 15. Glove box 16. Crash pad garnish [RH] 17. Crash pad main lower panel 18. Crash pad lower main center reinf panel 19. Cowl cross bar assembly |
Crash Pad
...
Cluster Fascia Panel Components and Components Location
Component Location
1. Cluster fascia panel
...
