| Components |

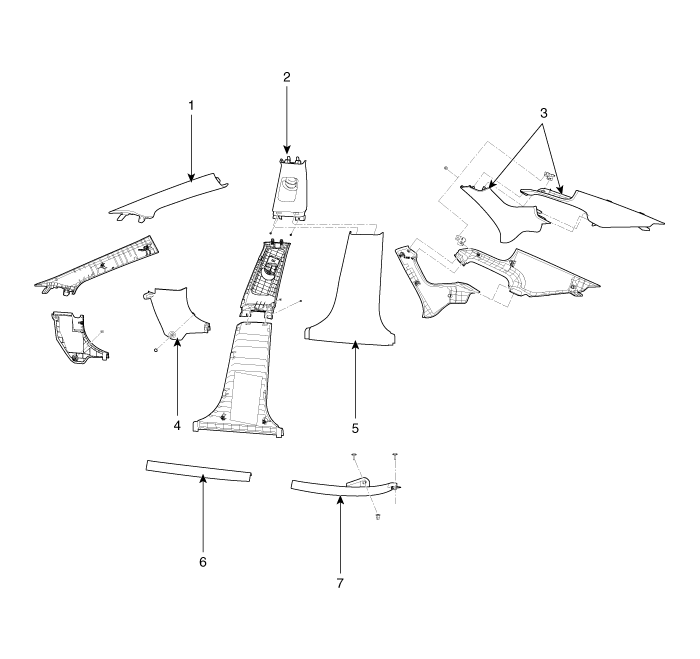

| 1. Front pillar trim 2. Center pillar upper trim 3. Rear pillar trim 4. Cowl side trim | 5. Center pillar lower trim 6. Front door scuff trim 7. Rear door scuff trim |
Interior Trim
...
Door Scuff Trim Components and Components Location
Component Location
1. Front door scuff trim2. Rear door scuff trim
...
