| Components |

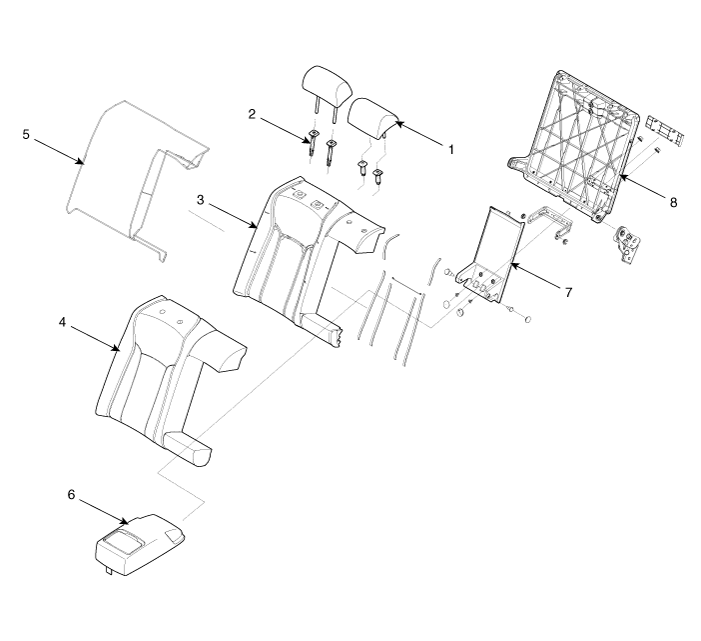

| Rear Seat Back [RH] |
| 1. Headrest 2. Headrest guide 3. Rear seat back pad 4. Rear seat back cover | 5. Rear seat back pad support wire 6. Rear back armrest 7. Hinge bracket cover 8. Rear seat back main panel |

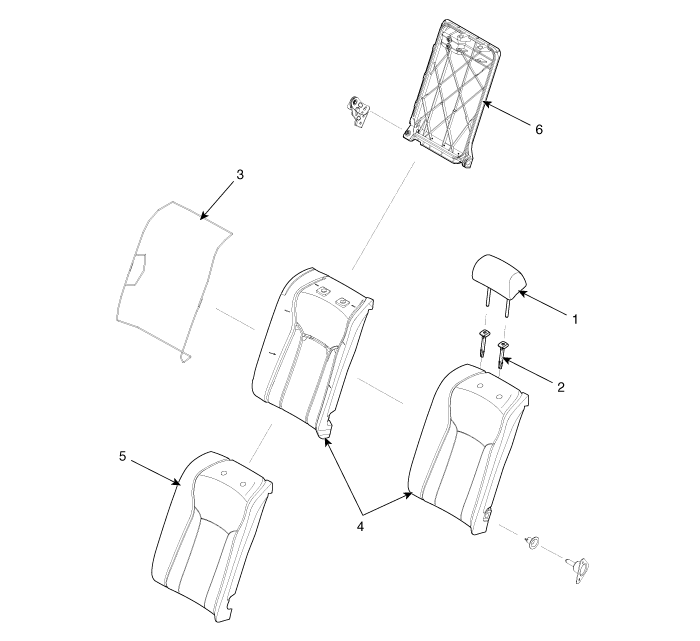

| Rear Seat Back [LH] |
| 1. Headrest 2. Headrest guide 3. Rear seat back pad support wire | 4. Rear seat back pad 5. Rear seat back cover 6. Rear seat back main panel |

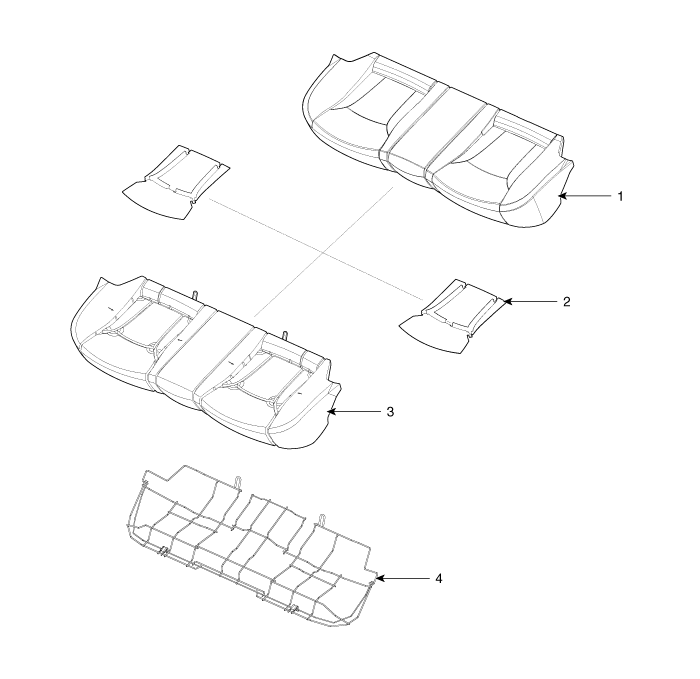

| Rear Seat Cushion |
| 1. Rear seat cushion cover 2. Rear seat cushion warmer | 3. Rear seat cushion pad 4. Rear seat cushion frame |
Rear Seat
...
Rear Seat Assembly Components and Components Location
Component Location
1. Rear seat cushion assembly2. Rear seat back assembly
...
