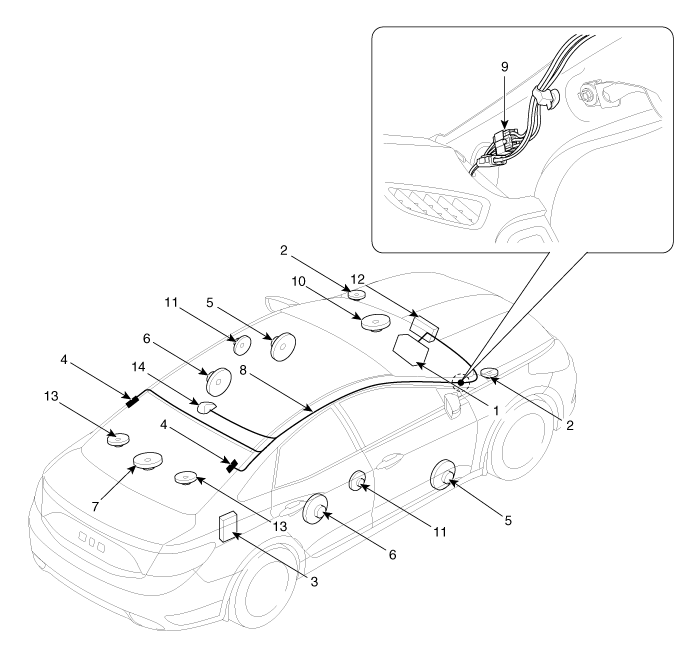

| Components Location |
| 1. AVN (A/V & Navigation head unit) 2. Midrange speaker 3. External amplifier 4. Glass antenna (Radio) 5. Front door speaker 6. Rear door speaker 7. Subwoofer speaker | 8. Antenna feeder cable 9. Feeder cable joint connector 10. Center speaker (Option) 11. Rear tweeter speaker (Option) 12. AVN monitor 13. Surround speaker (Option) 14. Roof antenna (GPS) |
Specifications
Specifications
ItemSpecificationPower sourceDC 14.4V (-) groundFrequency range / Channel spaceFM : 87.5 ~ 108 MHz / 100 KHzAM : 531 ~ 1602 KHz / 9 KHzTuning typePLL SYNTHESIZED TUNINGImpedance2 o ...
Schematic Diagrams
System Block Diagram
...
