| Component Location |

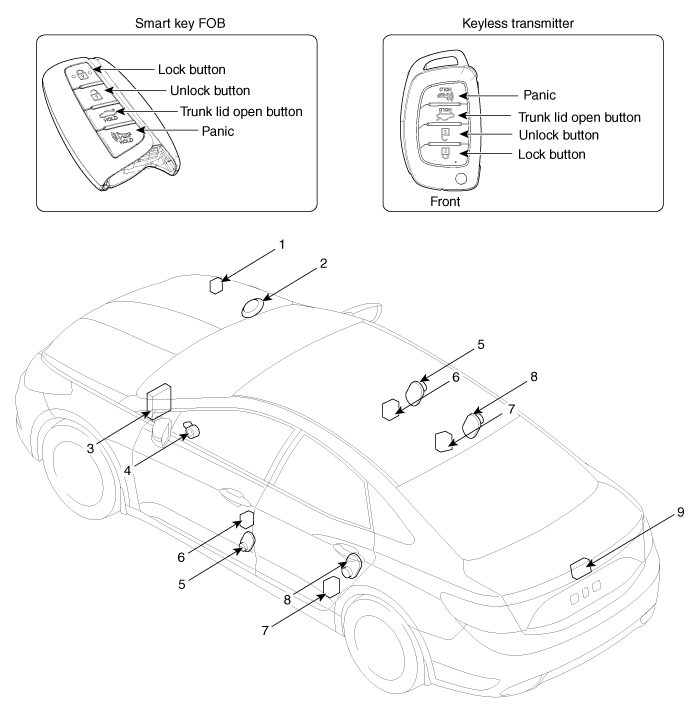

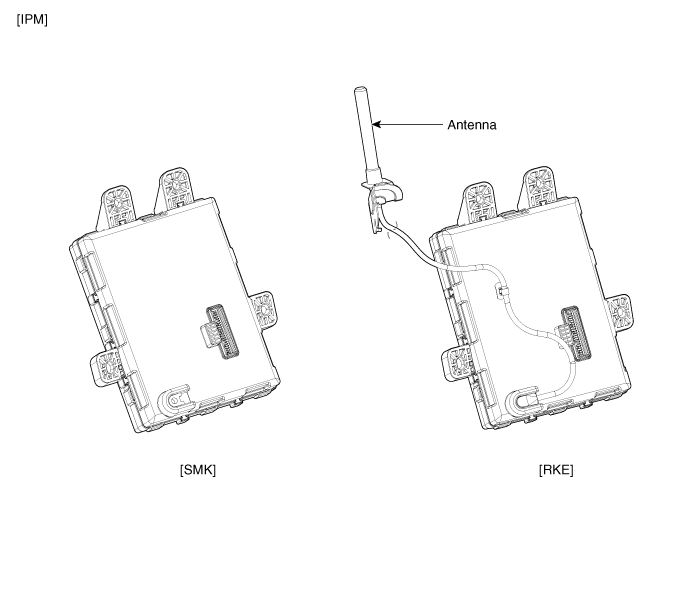

| 1. Hood switch 2. Burglar horn 3. IPM and RF antenna 4. Key warning switch 5. Front door switch | 6. Front door lock actuator & switch 7. Rear door lock actuator & switch 8. Rear door switch 9. Trunk lid open switch |
| Components |
Description and Operation
Description
Remote Keyless Entry System
The described function is a radio-frequency remote control
for central doors locking / unlocking, trunk release and Panic activity
of an automotive vehi ...
