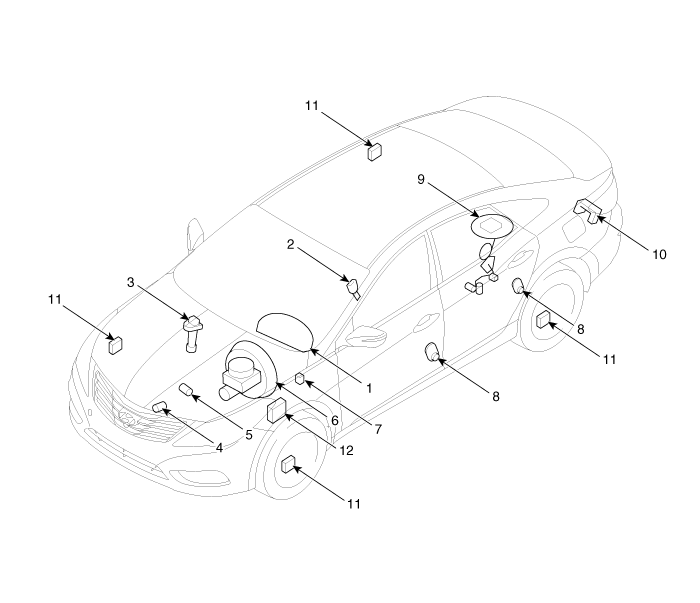

| Component Location |
| 1. Cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Water temperature gauge sender 5. Oil pressure switch 6. Brake oil level switch | 7. Parking brake switch 8. Door switch 9. Fuel gauge sender 10. Trunk open switch 11. Wheel speed sensor 12. ABS ECU |
Instrument Cluster Components and Components Location
Components
Input/Output Specification
...
