Hyundai Azera: Instrument Cluster Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Components and Components Location

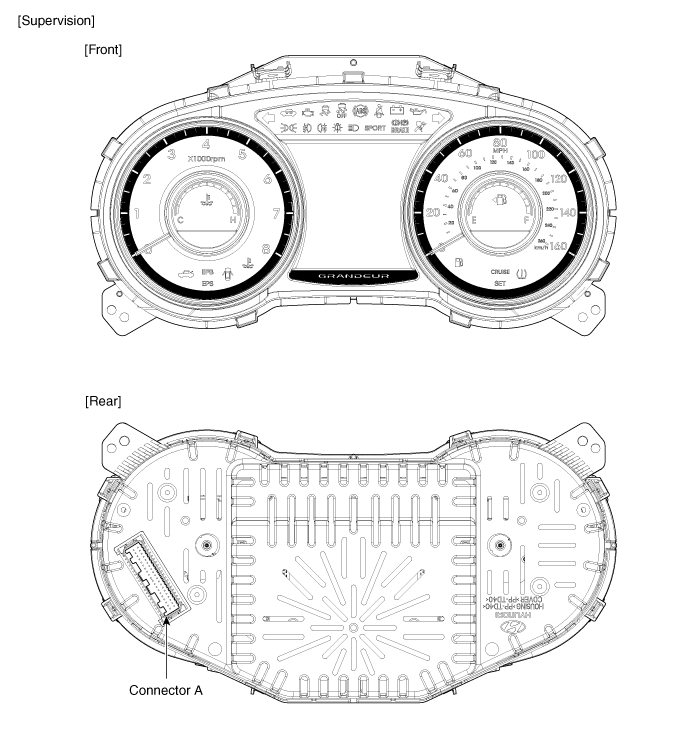

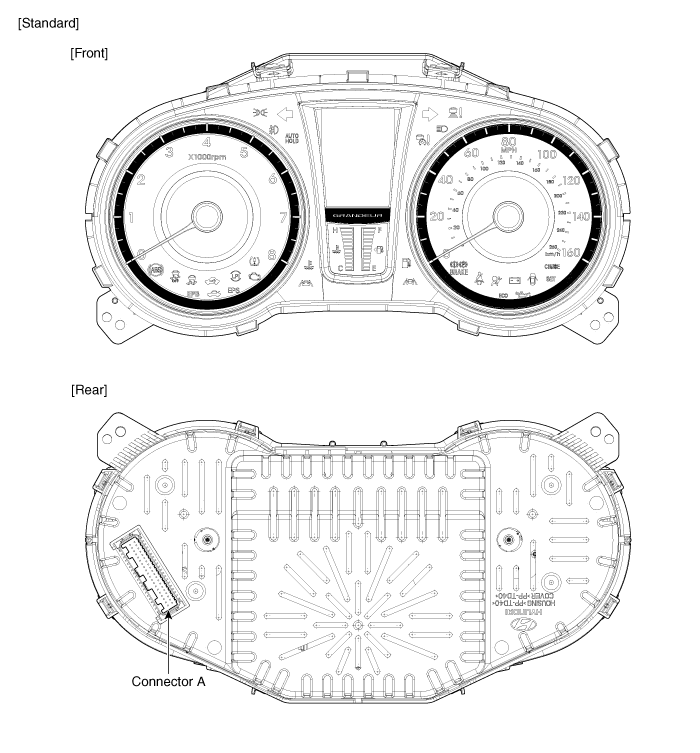

| Components |

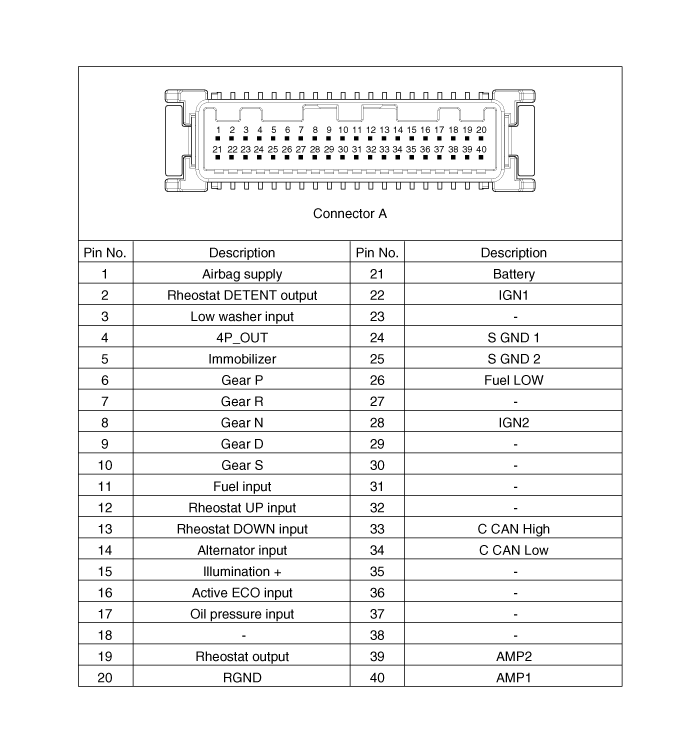

| Input/Output Specification |
Components and Components Location
Component Location
1. Cluster assembly2. Seat belt switch3. Vehicle speed sensor4. Water temperature gauge sender5. Oil pressure switch6. Brake oil level switch7. Parking brake switch8. Door swit ...
Instrument Cluster Schematic Diagrams
Circuit Diagram
...
