Hyundai Azera: Instrument Cluster Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Schematic Diagrams
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Schematic Diagrams

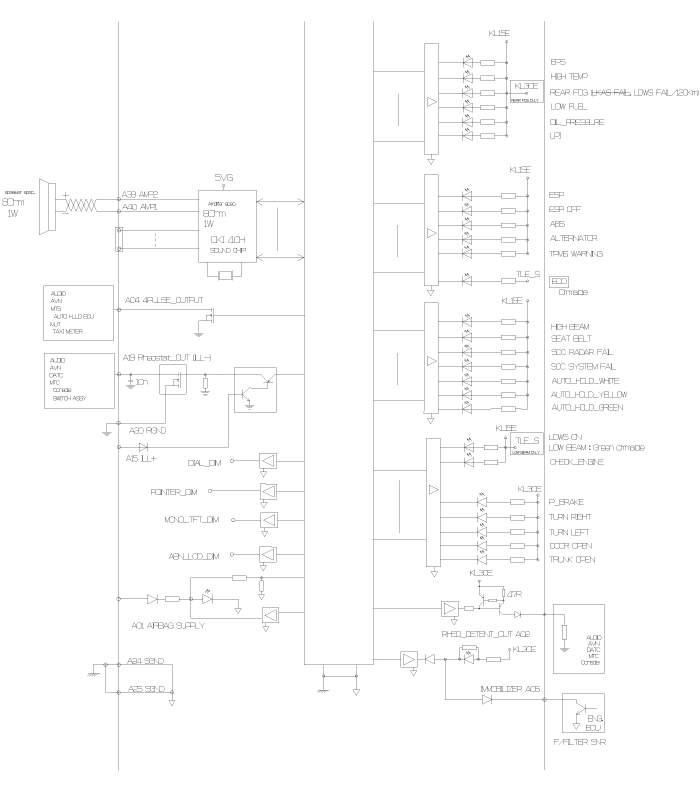

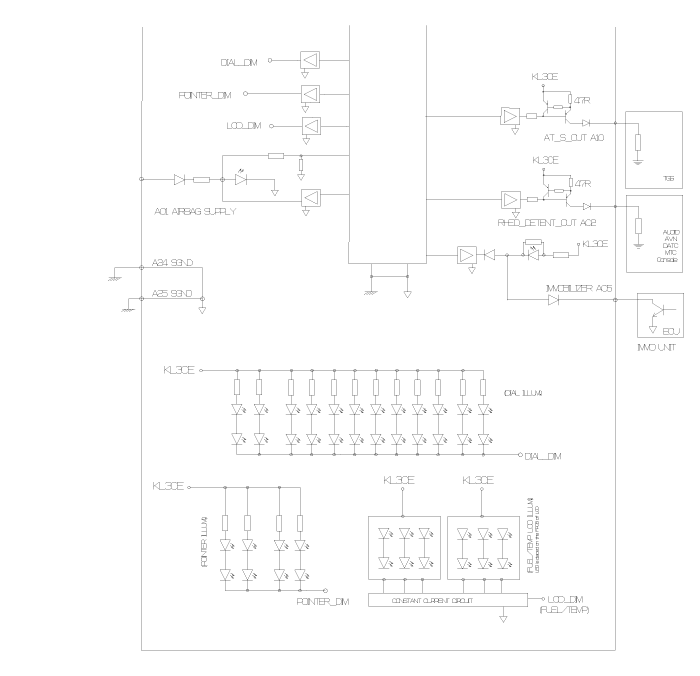

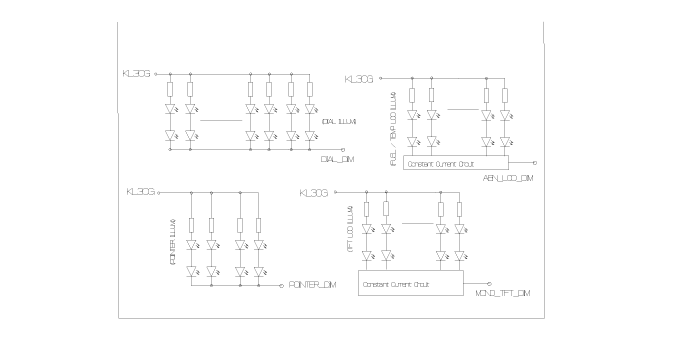

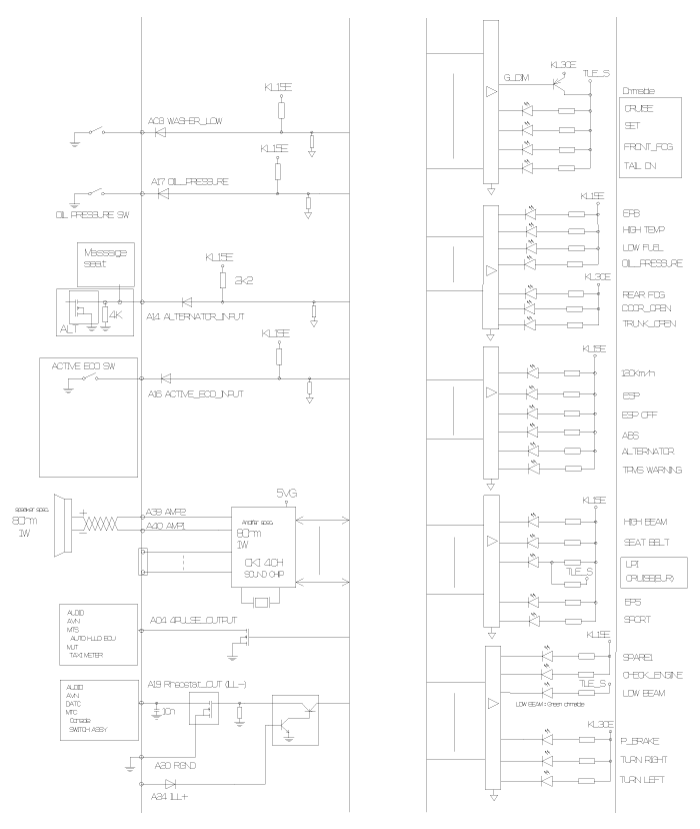

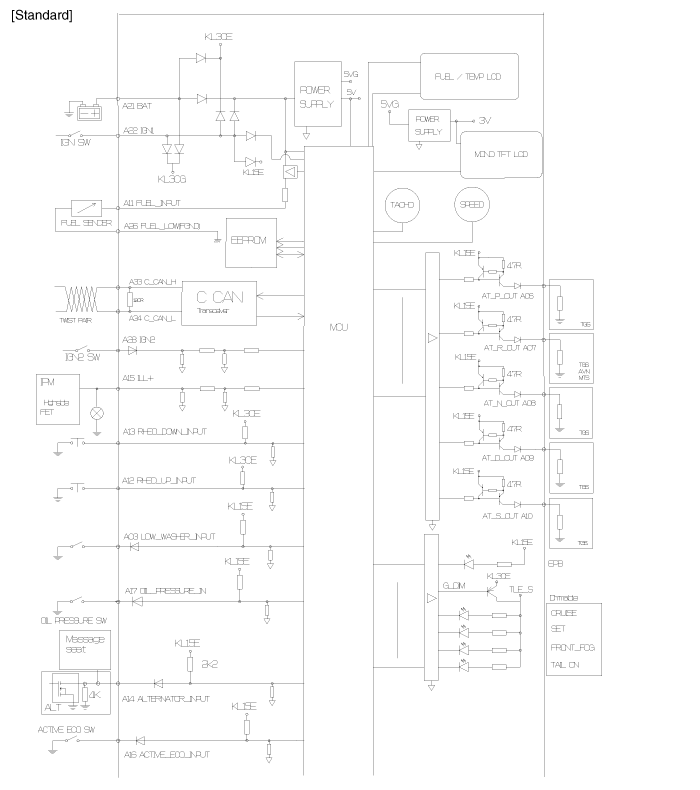

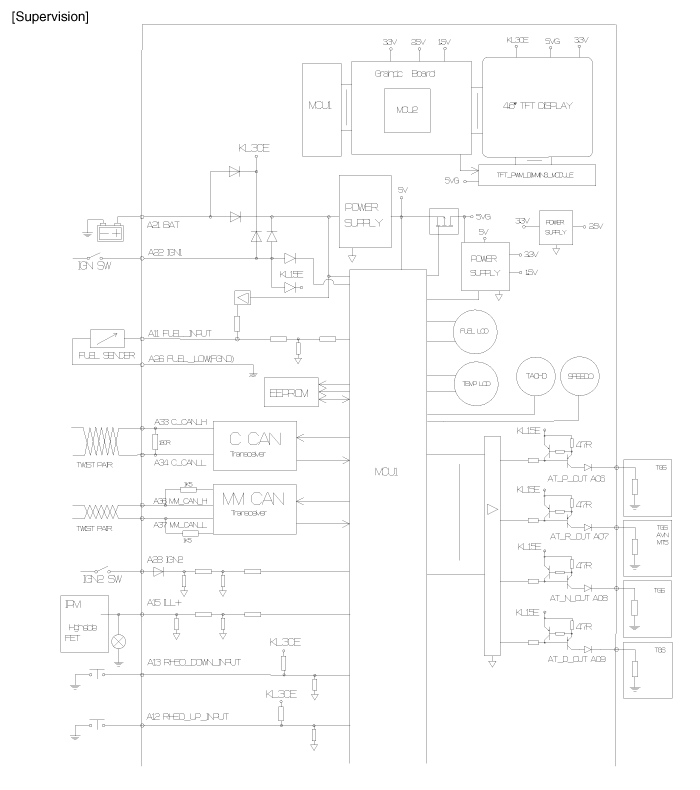

| Circuit Diagram |
Instrument Cluster Components and Components Location
Components
Input/Output Specification
...
Instrument Cluster Description and Operation
Description
System block diagram
High speed CAN communication : C-CAN
1.
User option : Seat Easy Access, Welcome Light, etc
2.
SPAS: Smart Parking Aid System
3.
EPB : Electronic Parking ...
