| Component Location |

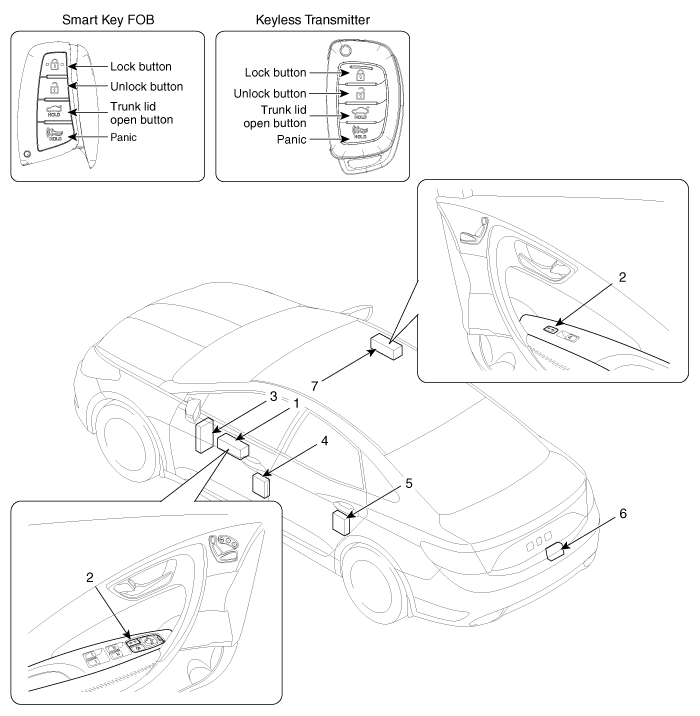

| 1. Driver power window switch 2. Door lock switch 3. IPM(Intelligent intergrated Platform Module) 4. Front door lock actuator | 5. Rear door lock actuator 6. Trunk lid open actuator 7. Assistant power window switch |
Power Door Locks
...
Power Door Lock Actuators Repair procedures
Inspection
Front Door Lock Actuator Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
Remove the front door module.
3.
Disconnect the connector (7P) from t ...
