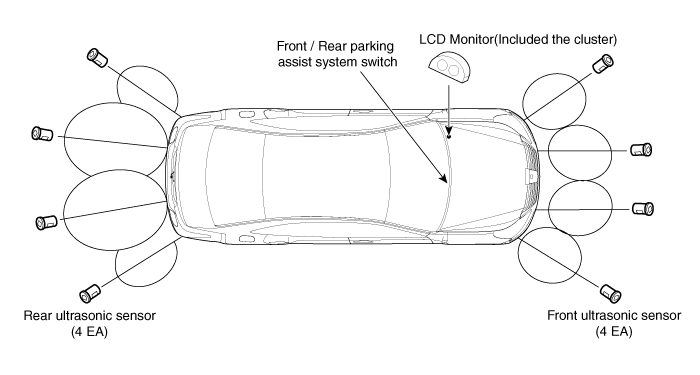

| Component Location |
Specifications
Specifications
ItemSpecificationFront/Rear parking assist system control unitRated voltageDC 12VOperation range30~120 cm(11.8~47.2 in)Operation voltageDC 9V~16VOperation currentMax. 300 mAOperati ...
Description and Operation
Description
When reversing, the driver may have difficult seeing the
blind spots and determine the distance from the object. In order to
provide the driver safety and convenience, back warning ...
