| Components |

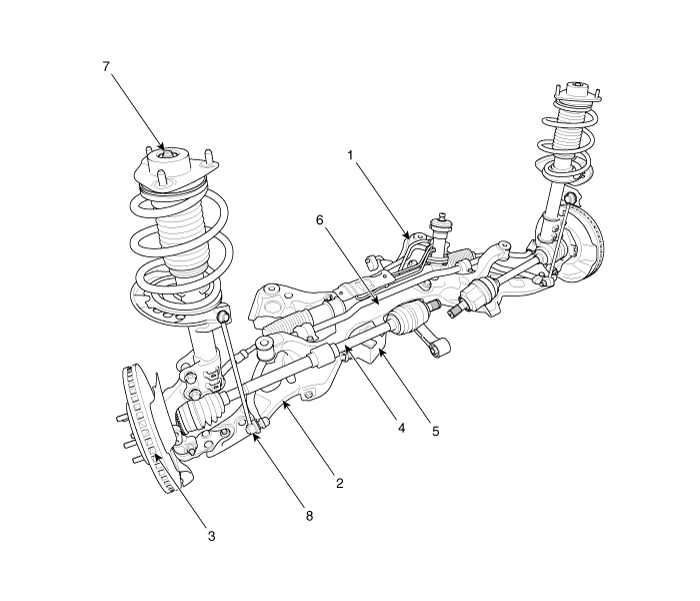

| 1. Sub frame 2. Lower arm 3. Front disk 4. Drive shaft | 5. Steering gearbox 6. Front stabilizer bar 7. Front strut assembly 8. Front stabilizer bar link |
Front Strut Assembly Components and Components Location
Components
1. Dust cover2. Upper locking nut3. Self locking nut4. Space5. Insulator6. Spring upper seat7. Spring upper pad8. Strut dust cover & Bumper rubber9. Coil spring10. Spring lower pad ...
