| Components |

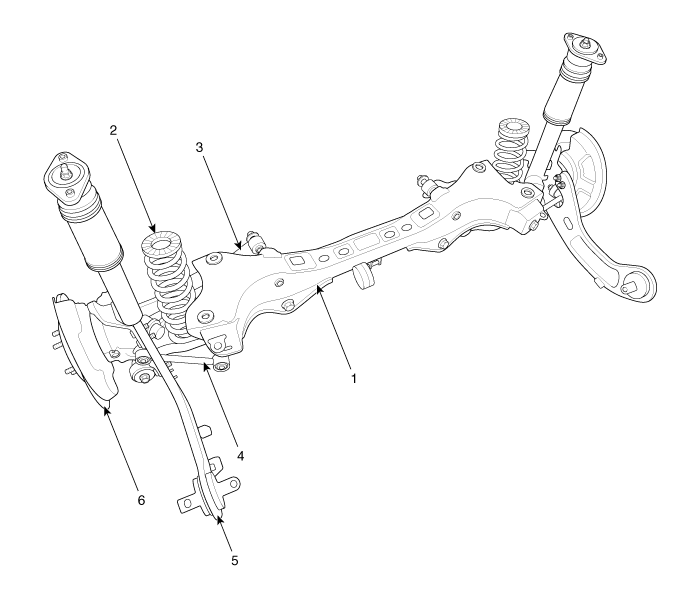

| 1. Sub frame 2. Coil spring 3. Upper arm | 4. Assist arm 5. Trailing arm 6. Rear axle |
Rear Shock Absorber Components and Components Location
Components
1. Self locking nut2. Bracket assembly3. Bumper rubber4. Dust cover5. Shock absorber
...
