Hyundai Azera: Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Suspension System / Tire Pressure Monitoring System / Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Suspension System / Tire Pressure Monitoring System / Components and Components Location
| Components |

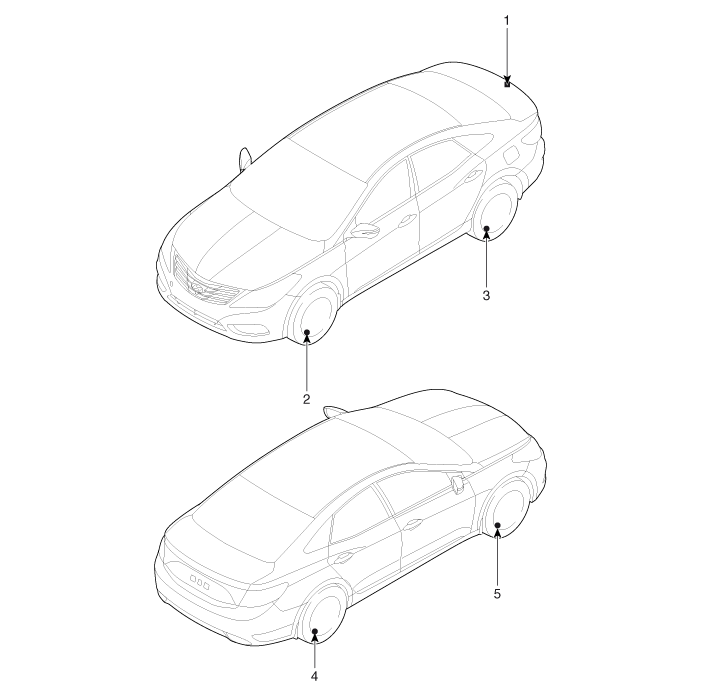

| 1. Receiver 2. TPMS sensor (FL) 3. TPMS sensor (RL) | 4. TPMS sensor (RR) 5. TPMS sensor (FR) |
Description and Operation
Description
Tread Lamp
-
Tire Under Inflation / Leak Warning.
1.
Turn on condition
A.
When tire pressure is below allowed threshold
B.
When rapid leak is detected by the sensor.
2 ...
