Hyundai Azera: Crankshaft Position Sensor (CKPS) Troubleshooting
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting

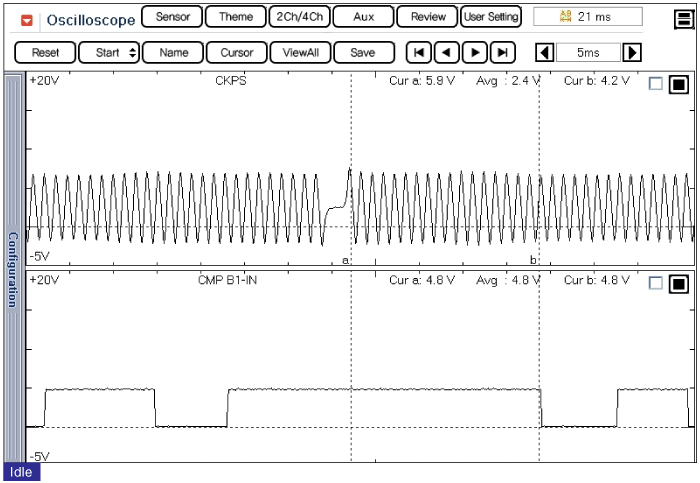

| Wave Form |
Crankshaft Position Sensor (CKPS) Specifications
Specification
ItemSpecificationCoil Resistance (?)774 ~ 946 [20°C(68°F)]Air Gap (mm)0.5 ~ 1.5
...
Crankshaft Position Sensor (CKPS) Schematic Diagrams
Circuit Diagram
...
