Hyundai Azera: Seat Heater Switch Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch Schematic Diagrams

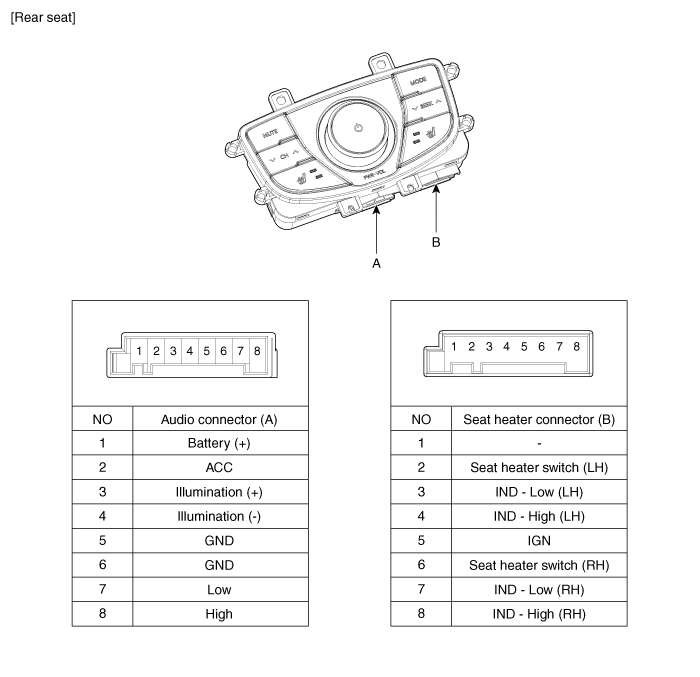

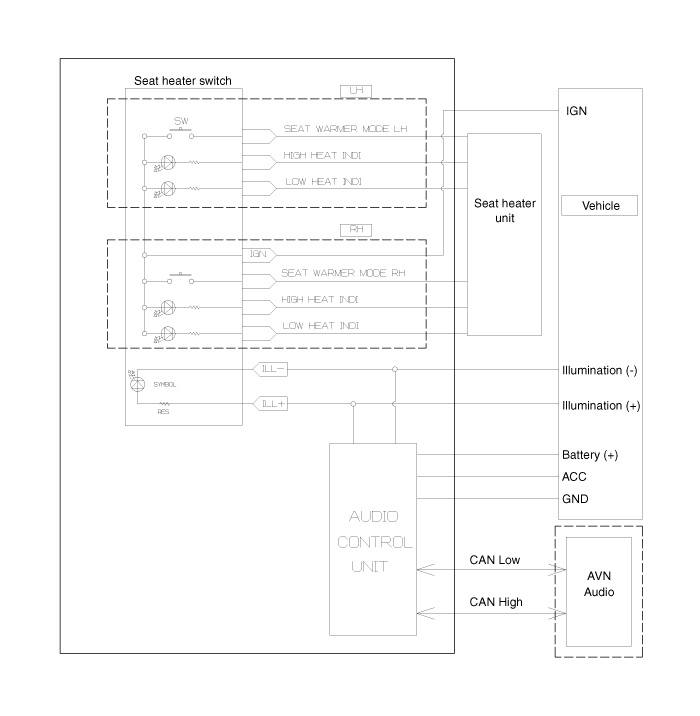

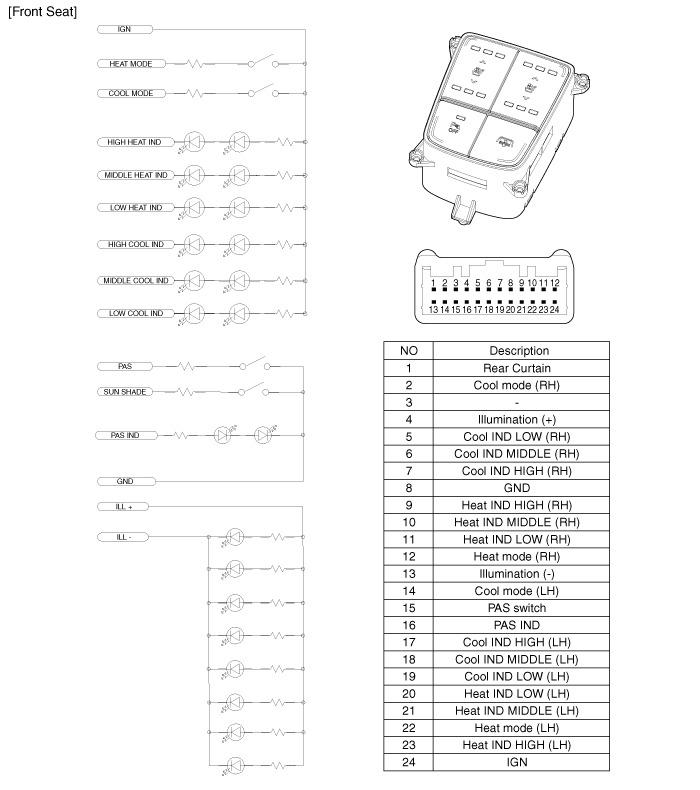

| Circuit Diagram |
Seat Heater Repair procedures
Inspection
First Seat Heater
1.
Check for continuity and measure the resistance between No.1 and NO.4 terminals.
No.DescriptionNo.Description1Heater (+)3NTC (-)2NTC (+)4Heater (-)
Standar ...
Seat Heater Switch Repair procedures
Inspection
Front Seat Heater Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the floor console upper cover.
(Refer to Body - "Floor Console Assembly")
3.
Remove the sea ...
