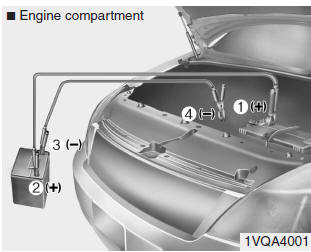

Connect cables in numerical order and disconnect in reverse order.
Positive (+) battery terminal on
your vehicle
Positive (+) battery terminal on
the booster battery
Negative (-) battery terminal on
the booster battery
Negative (-) battery terminal on
your vehicle
