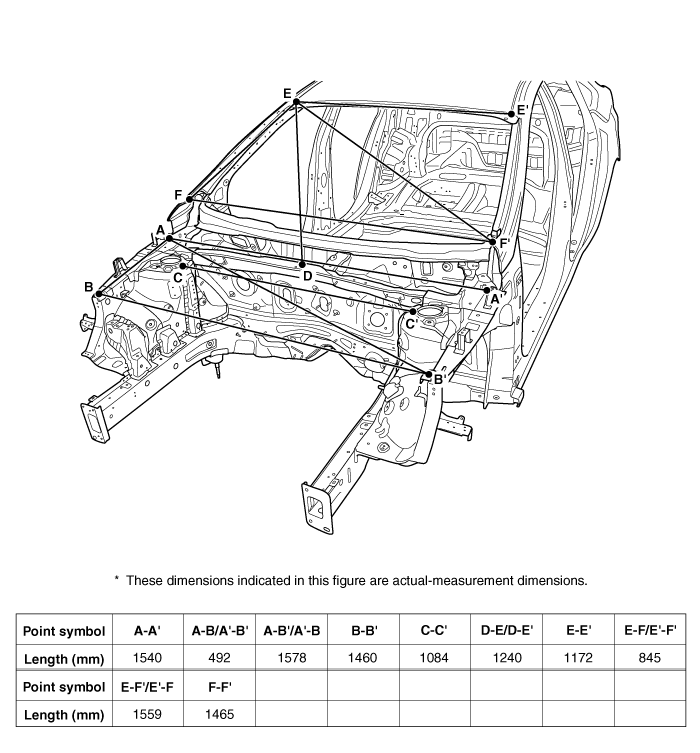

| Front Body A |
|
|
|
| Hood hinge mounting hole (O10) | Fender panel mounting hole (O9) | Front shock absorber mounting hole (O11) |
|
|
|
| Cowl top cover mounting hole (O9) | Roof panel front corner | Front pillar outer corner |

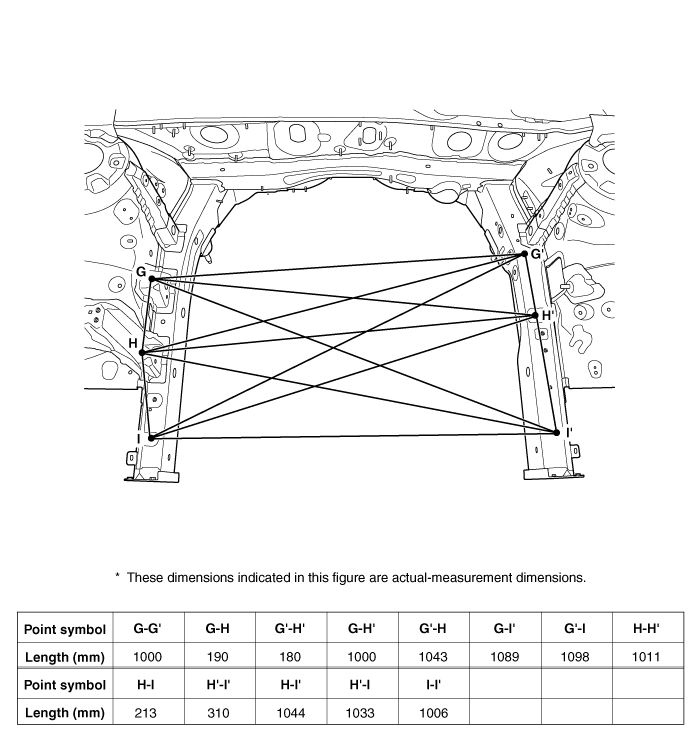

| Front Body B |
|
|
|
| Hood hinge mounting hole (O10) | Fender panel mounting hole (O6.6) | Cowl top cover mounting hole (O9) |
|
|
|
| Engine mounting bracket hole (O11) | Transaxle mounting hole (O13) | Engine mounting bracket hole (O11) |
|
|
|
| Transaxle mounting hole (O13) | Front side member tooling hole (O9) | Front side member tooling hole (O9) |
|
| |
| Front end module mounting hole (O12) | Front end module mounting hole (O12) |

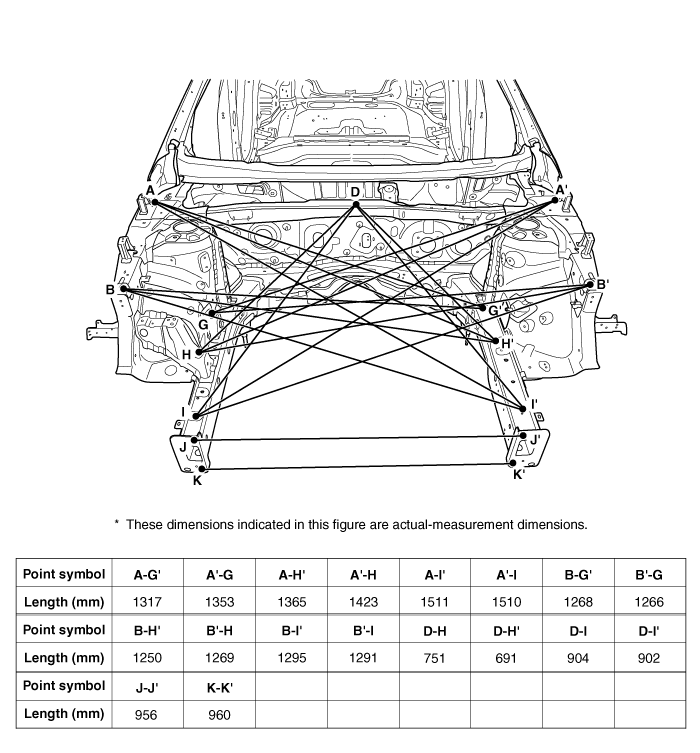

| Front Body C |
|
|
|
| Engine mounting bracket hole (O11) | Transaxle mounting hole (O13) | Engine mounting bracket hole (O11) |
|
|
|
| Transaxle mounting hole (O13) | Front side member tooling hole (O9) | Front side member tooling hole (O9) |
General Information
General
1.
Basically, all measurements in this manual are taken with a tracking gauge.
2.
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
3.
...
Side Body Body Repair
Side Body A
Front side member tooling hole (O20)Fender apron upper member tooling hole (O10) Front door upper hinge mounting hole(O13) Front door lower hinge mounting hole (O13) Rear door upper h ...
