| Component Location |

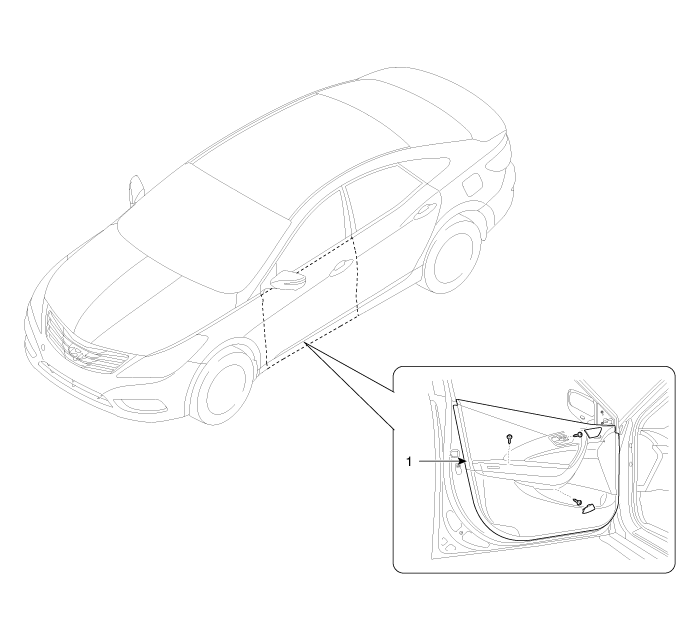

| 1. Front door trim |
Repair procedures
Adjustment
Glass Adjustment
•
Check the glass run channel for damage or deterioration, and replace them if necessary.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Tri ...
Front Door Trim Repair procedures
Replacement
•
Be careful not to scratch the door trim and other parts.
•
Put on gloves to protect your hands.
1.
Using a screwdriver or remover, remove the fro ...
