| Inspection |
Test the horn by connecting battery voltage to the 1 terminal and ground the 2 terminal.
The horn should make a sound. If the horn fails to make a sound, replace it.
Horn Relay Inspection
| 1. |

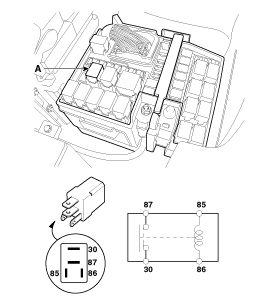

Remove the horn relay (A) from the engine room relay box. |
| 2. |
There should be continuity between the No.30 and No.87
terminals when power and ground are connected to the No.85 and No.86
terminals. |
| 3. |
There should be no continuity between the No.30 and No.87 terminals when power is disconnected.
|
| Removal |
| 1. |
Remove the radiator grill upper gide.
|
| 2. |
Remove the mounting nut and disconnect the horn connector, then remove the high pitch horn (A) and low pitch horn (B).
|
| Installation |
| 1. |
Connect the horn connector, then reassemble the horn. |
| 2. |
Reassemble the radiator grill upper gide. |
| Adjustment |
Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.
After adjustment, apply a small amount of paint around the screw head to keep it from loosening. |
Components and Components Location
Component Location
1. Horn switch2. Horn relay (Engine room compartment)3. Horn - High pitch4. Horn - Low pitch5. Clock spring
...
