Hyundai Azera: Heated Oxygen Sensor (HO2S) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams

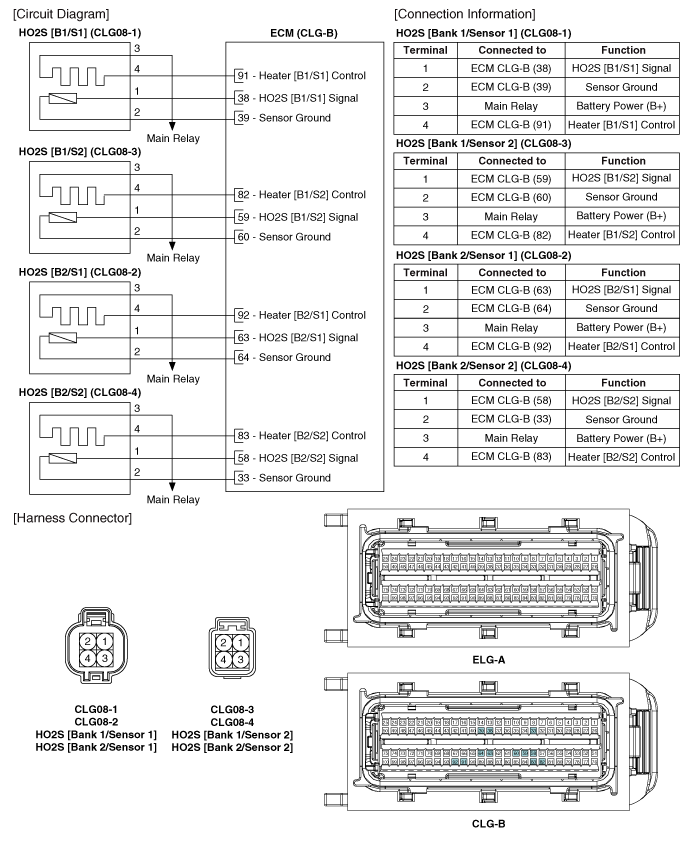

| Circuit Diagram |
