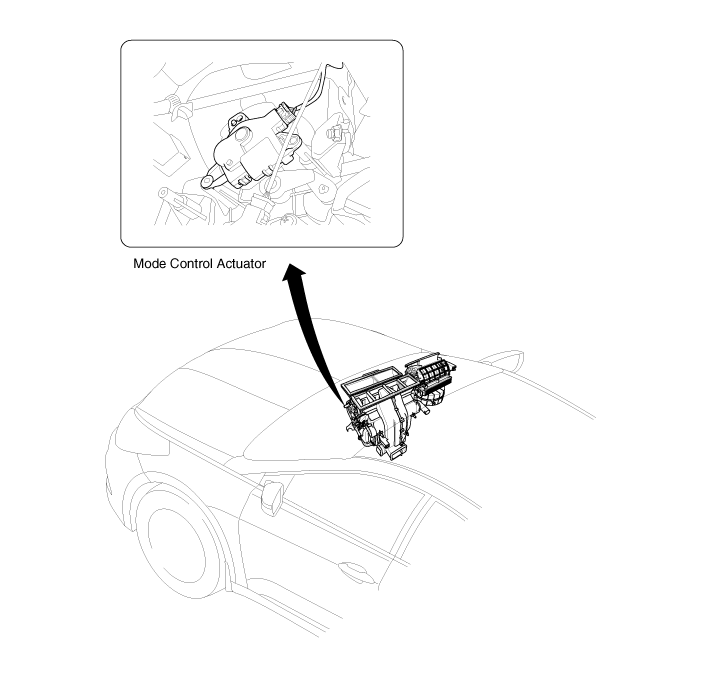

Hyundai Azera: Mode Control Actuator Components and Components Location

Temperature Control Actuator Repair procedures

Inspection 1. Ignition "OFF" 2. Disconnect the connector of temperature control actuator. 3. Verify that the temperature control actuator operates to the hot position when connecting 12 ...

Mode Control Actuator Description and Operation

Description The mode control actuator is located at the heater unit. It adjusts position of mode door by operating mode control actuator based on signal of A/C control unit. Pressing mode select ...

See also:

Rheostat Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the passenger compartment juction box cover. 3. Remove the crash pad side switch assembly (A) by pushing it through ju ...

ESCL(Electronic Steering Column Lock) Repair procedures
Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the steering column upper and lower shroud ...
