Replacement |
|
1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly") |
2. |
Remove the console rear complete & console front complete assembly.
(Refer to Floor Console - "Floor Console Assembly") |
3. |
Remove the front pillar trim.
(Refer to Interior Trim - "Front Pillar Trim") |
4. |
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim") |
5. |
Remove the instrument cluster. |
6. |
Remove the steering column shroud panel.
(Refer to Crash Pad - "Steering Column Shroud Panel") |
7. |
Remove the AVN head unit. |
8. |
Remove the glove box housing.
(Refer to Crash Pad - "Glove Box Housing") |
9. |
Disconnect the steering column connectors. |
10. |
Down the steering column after loosening the mounting bolts. |
11. |
After loosening the mounting screws, then remove the crash pad garnish [RH] (A). |
12. |
Disconnect the connector (A). |
13. |
After loosening the mounting screws, then remove the crash pad main lower panel (A). |
14. |
After loosening the mounting screw, then remove the air duct assembly (A). |
15. |
Using a screwdriver or remover, remove the center speaker grille (A). |
16. |
After loosening the mounting screws, then remove the center speaker assembly (A). |
17. |
Disconnect the center speaker connectors (A). |
18. |
Disconnect the start/stop button connector (A). |
19. |
After loosening the mounting screws, then remove the cubis assembly (A). |
20. |
Disconnect the connector (B). |
21. |
After loosening the mounting screws, then remove the joint block (A). |
22. |
Disconnect the passenger's airbag connector (A). |
23. |
Loosen the mounting bolts. |
24. |
Using a screwdriver or remover, remove the photo sensor (A). |
25. |
Disconnect the photo sensor connector (B). |
26. |
Disconnect the passenger's airbag connectors (A). |
27. |
Disconnect the speaker [LH, RH] connectors (A). |
28. |

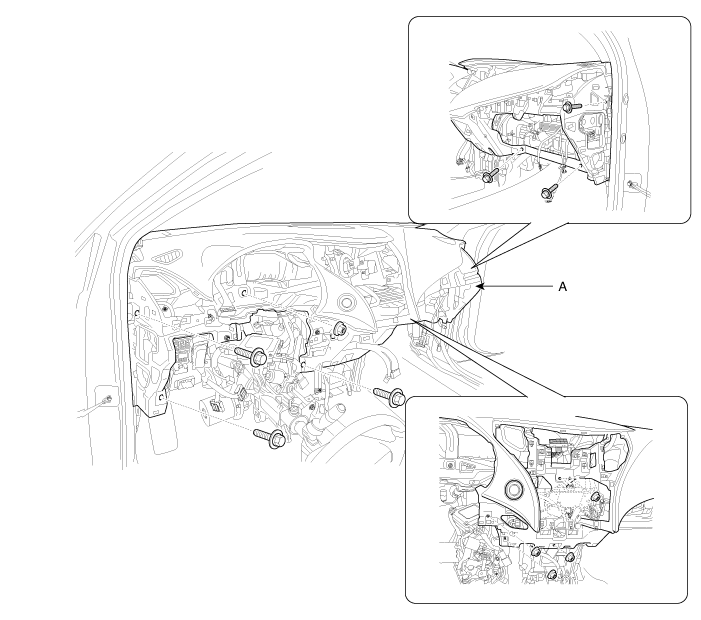

After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A). |
29. |
Installation is the reverse of removal.
|
