| Inspection |
Diagnosis With GDS
| 1. |
It will be able to diagnose defects of DDM/ADM with GDS
quickly. GDS can operates actuator forcefully, input/output value
monitoring and self diagnosis. |
| 2. |
Select model and "IPM". |
| 3. |
Select the "DDM" to check. |
| 4. |

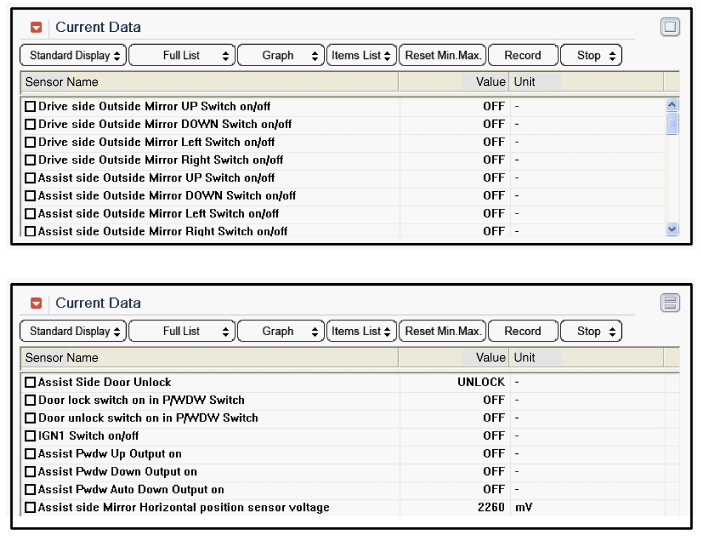

Select "Input/output monitoring", if you will check current
data of power door lock system. It provides input/output status of
DDM/ADM.
|
| 5. |
If you will check the power door lock operation forcefully, select "Actuation test".
|
| 6. |
To check the DTC of the DDM/ADM module, select "Diagnostic trouble codes"
|
| Removal |
| 1. |
Disconnect the negative(-) battery terminal. |
| 2. |
Remove the front door trim panel.
|
| 3. |
Disconnect the power window switch module connector (A) from the wiring harness.
|
| 4. |
Remove the power window switch module (B) from the door trim after loosening the mounting screws. |
| Installation |
| 1. |
Install the power window switch module. |
| 2. |
Install the door trim panel after reconnecting the relevant connectors
|
Power Door Lock Actuators Repair procedures
Inspection
Front Door Lock Actuator Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
Remove the front door module.
3.
Disconnect the connector (7P) from t ...
