Hyundai Azera: Rear Body Body Repair
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Body Dimensions / Rear Body Body Repair
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Body Dimensions / Rear Body Body Repair
|
|
|

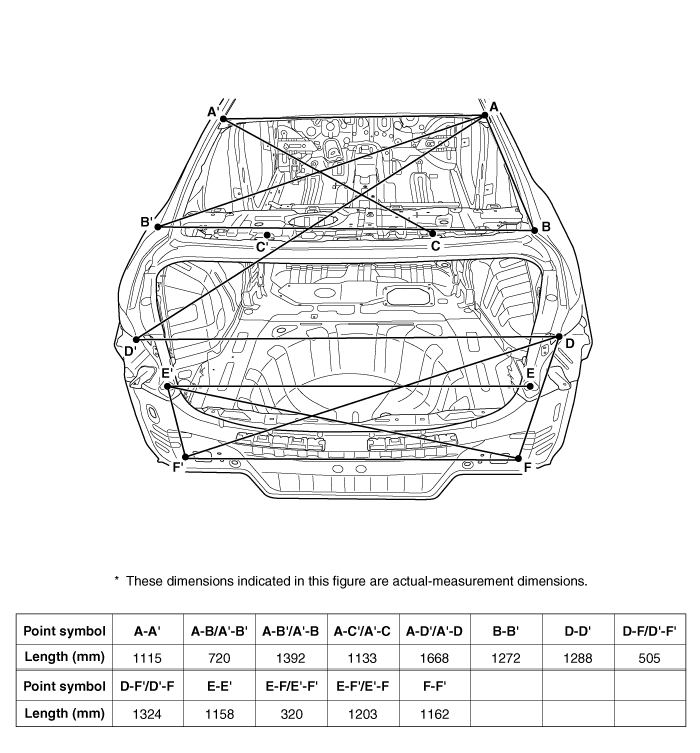

| Roof panel rear corner | Side outer panel rear corner | Rear package tray trim mounting hole (O12) |
|
|
|
| Side outer panel rear corner | Rear combination lamp mounting hole (8.5X8.5) | Rear bumper mounting hole (14X12) |
| ||
| Rear bumper mounting hole (14X12) |
