Hyundai Azera: Under Body Body Repair
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Body (Interior and Exterior) / Body Dimensions / Under Body Body Repair
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Body (Interior and Exterior) / Body Dimensions / Under Body Body Repair

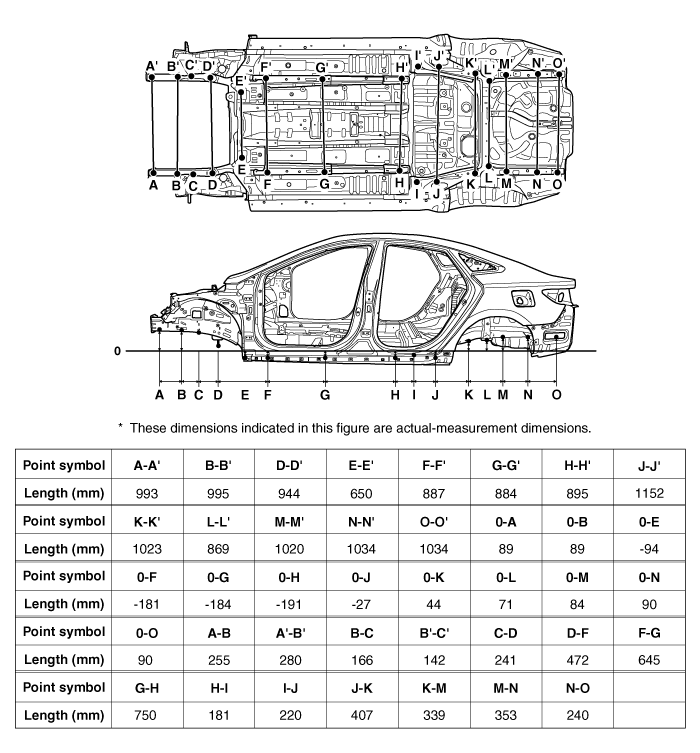

| Projected Dimensions |
|
|
|
| Front side member tooling hole (O25) | Side cover mounting hole (O9) | Side cover mounting hole (O9) |
|
|
|
| Front subframe mounting bolt | Front subframe mounting hole (O18) | Front subframe mounting hole (O12) |
|
|
|
| Front side member tooling hole (O14.5) | Center floor side member extension tooling hole (O19.5) | Rear floor side member tooling hole (O8) |
|
|
|
| Rear trailing arm mounting hole (O18) | Rear subframe mounting hole (O17) | Rear subframe mounting hole (O16) |
|
|
|
| Fuel filler-neck bracket mounting hole (O8) | Fuel filler-neck bracket mounting hole (O8) | Rear floor side member tooling hole (O10) |
| ||
| Rear floor side member tooling hole (O20) |

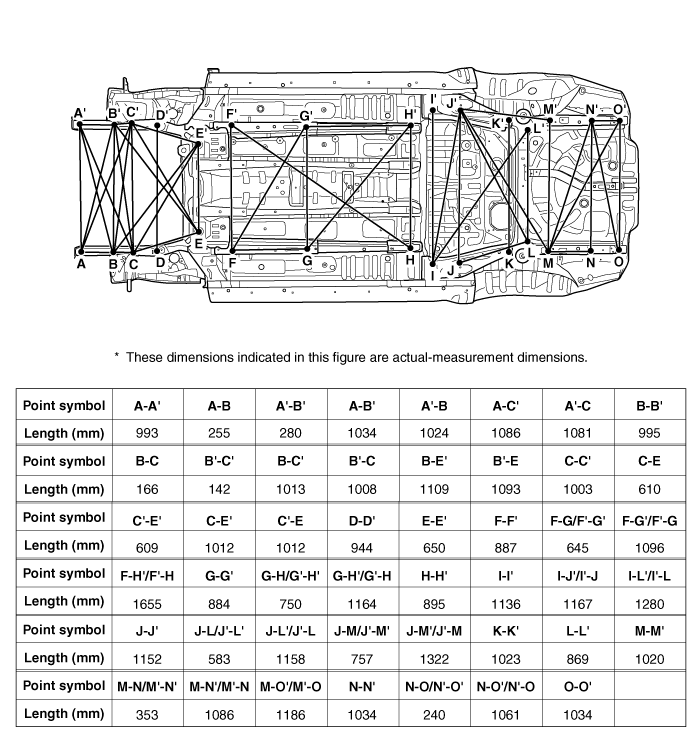

| Actual Measurement Dimensions |
|
|
|
| Front side member tooling hole (O25) | Side cover mounting hole (O9) | Side cover mounting hole (O9) |
|
|
|
| Front subframe mounting bolt | Front subframe mounting hole (O18) | Front subframe mounting hole (O12) |
|
|
|
| Front side member tooling hole (O14.5) | Center floor side member extension tooling hole (O19.5) | Rear floor side member tooling hole (O8) |
|
|
|
| Rear trailing arm mounting hole (O18) | Rear subframe mounting hole (O17) | Rear subframe mounting hole (O16) |
|
|
|
| Fuel filler-neck bracket mounting hole (O8) | Fuel filler-neck bracket mounting hole (O8) | Rear floor side member tooling hole (O10) |
| ||
| Rear floor side member tooling hole (O20) |
Rear Body Body Repair
Roof panel rear cornerSide outer panel rear cornerRear package tray trim mounting hole (O12) Side outer panel rear cornerRear combination lamp mounting hole(8.5X8.5) Rear bumper mounting hole (14X ...
