Hyundai Azera: Rear Door Window Glass Repair procedures - Rear Door - Body (Interior and Exterior) - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Rear Door Window Glass Repair procedures

Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Window Glass Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

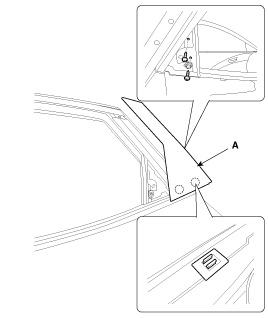

After loosening the mounting screws, then remove the rear door frame rear garnish (A).

3.
Loosen the rear door channel mounting bolts and nut.

4.
Remove the rear door window glass mounting hole plug (B).

•
Use the door switch to align the mounting hole/bolt with the hole in the door.
•
If unable to operate the window motor, remove the motor and align the hole by hand.
•
Be careful not to drop the glass and/or scratch the glass surface.
5.
Carefully adjust the rear door window glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.
Tightening torque :
3.9 ~ 2.9 N.m (0.4 ~ 1.2 kgf.m, 11.8 ~ 8.7 lb-ft)

6.
Installation is the reverse of removal.

•
Roll the glass up and down to see if it moves freely without binding.
•
Adjust glass position as needed.
•
Make sure the door lock and opens properly.
•
Replace any damaged clips.
