Hyundai Azera: Roller Blind Shoe Repair procedures - Panoramaroof - Body (Interior and Exterior) - Hyundai Azera 2011-2026 Service ManualHyundai Azera: Roller Blind Shoe Repair procedures

Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Panoramaroof / Roller Blind Shoe Repair procedures

Replacement
1.
Remove the roof trim assembly.
(Refer to Roof Trim - "Roof Trim Assembly")
2.
Remove the movable glass.
3.
After loosening the mounting TORX screws, remove the roller blind motor (A).

4.
After loosening the mounting TORX screws using a TORX wrench, remove the roller blind lower bracket (A).

5.
Remove the roll blind (A) by pulling it at a right angle.


•
When removing it, make sure that the edge (B) does not bump against the vehicle body because of the roller blind tension.
6.
Disengage the mechanism rail assembly (A) by releasing the mounting TORX screws.

7.
After loosening the mounting TORX screws, remove the roller blind deflection (A).

8.
Remove the roller blind cable (A) in the direction of arrow using a flat-head screwdriver.


•
When installing it, place the roller blind cable (A) in its original position.
9.

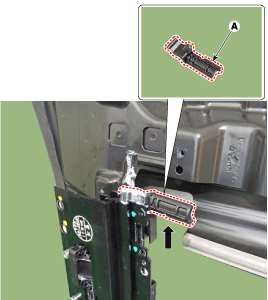

Remove the roller blind shoe (A) from the mechanism rail in the direction of arrow.


•
When installing it, take care not to damage the roller blind shoe.
10.
To install, reverse the removal procedure.
