Hyundai Azera: Schematic Diagrams
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Body Electrical System / Auto Lighting Control System / Schematic Diagrams
Fifth generation HG (2011–2024) / Hyundai Azera 2011-2024 Service Manual / Body Electrical System / Auto Lighting Control System / Schematic Diagrams

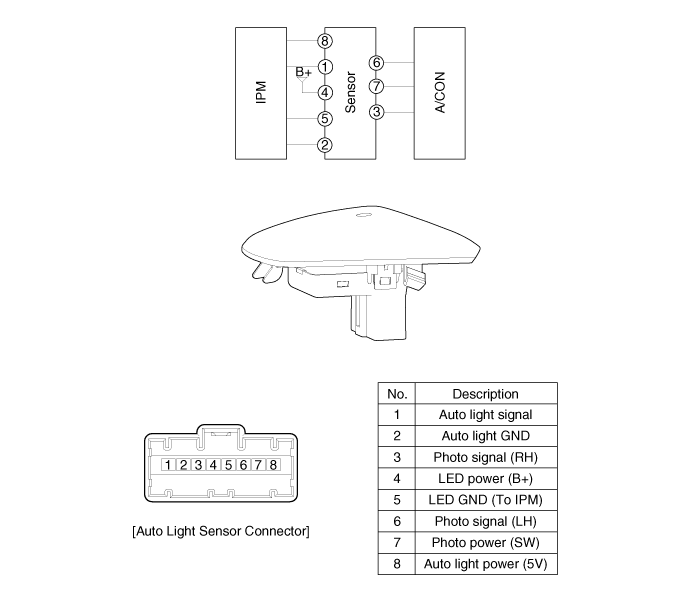

| Circuit Diagram |
Components and Components Location
Component Location
1. Auto light sensor2. Head lamps3. Lighting switch (Auto)4. Tail lamps5. IPM (Intelligent intergrated Platform Module)
...
Auto Light Sensor Repair procedures
Inspection
In the state of IGN1 ON, when multi function switch module
detects auto light switch on, tail lamp relay output and head lamp low
relay output are controlled according to auto light ...
