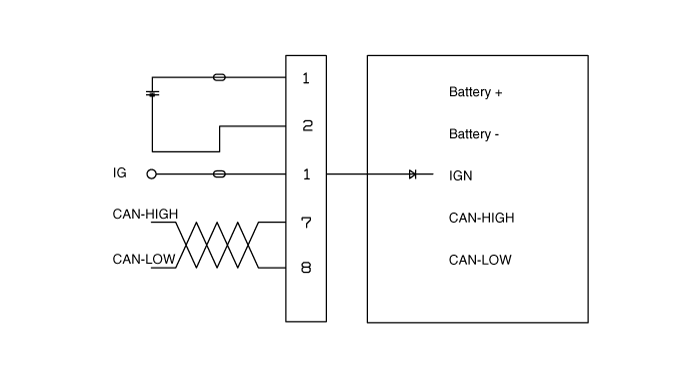

| MDPS Circuit Diagram |

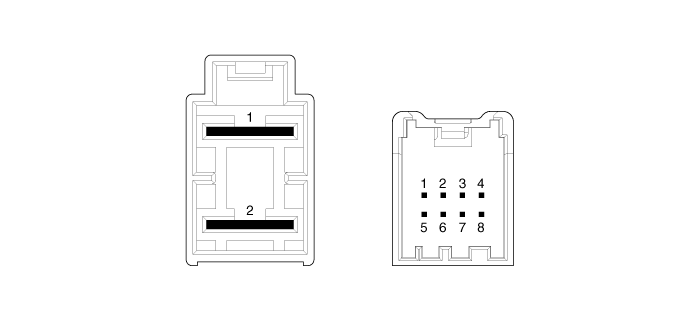

Harness Connector
| Type | Pin No | Description |
| Battery | 1 | Battery + |
| 2 | Battery - | |
| Vehicle | 1 | IGN |
| 2 | - | |
| 3 | - | |
| 4 | - | |
| 5 | - | |
| 6 | - | |
| 7 | High_CAN | |
| 8 | Low_CAN |
Components and Components Location
Components
1. Steering column2. ECU3. Motor4. Steering gear box
...
Repair procedures
General Inspection
After or before servicing the EPS system, perform the
troubleshooting and test procedure as follows. Compare the system
condition with normal condition in the table below and ...
