Hyundai Azera: Water Pipe Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cooling System / Water Pipe Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cooling System / Water Pipe Components and Components Location
| Components |

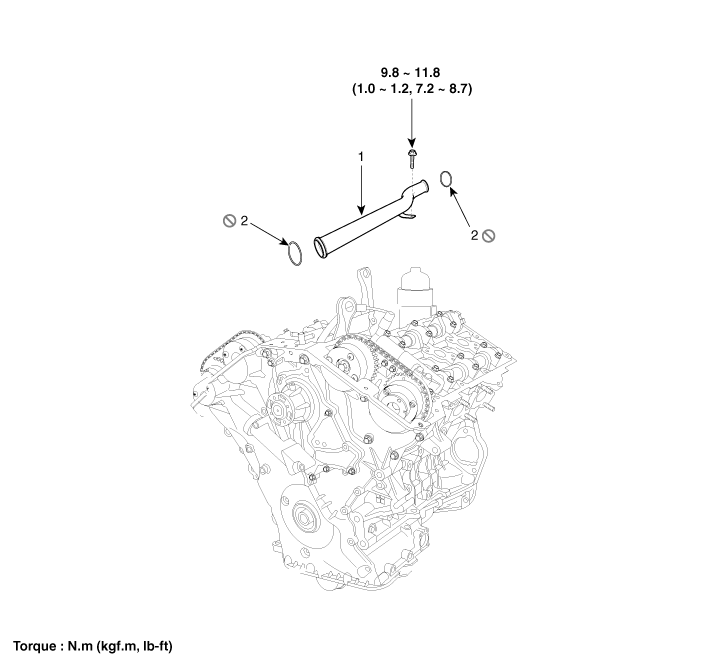

| 1. Water center pipe 2. O-ring |
Water Temperature Control Assembly Repair procedures
Removal and Installation
1.
Remove the radiator upper hose and lower hose.
(Refer to Cooling System - "Radiator Hose")
2.
Disconnect the throttle body water hoses.
(Refer to Fuel System - ...
Water Pipe Repair procedures
Removal and Installation
1.
Remove the delivery pipe and injector assembly.
(Refer to Fuel System - "Delivery Pipe")
2.
Remove the water temperature control assembly.
(Refer to Cooling Sys ...
