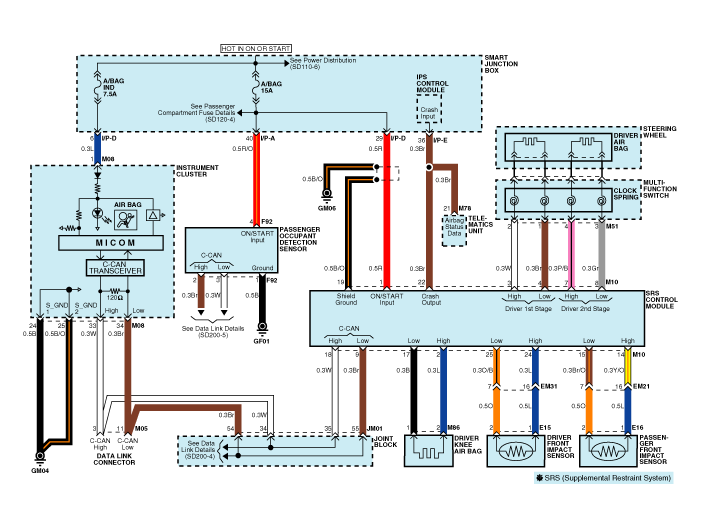

| Circuit Diagram (1) |

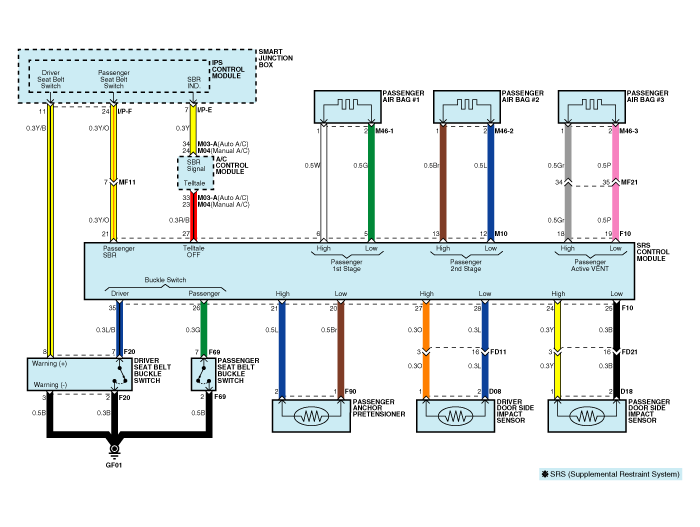

| Circuit Diagram (2) |

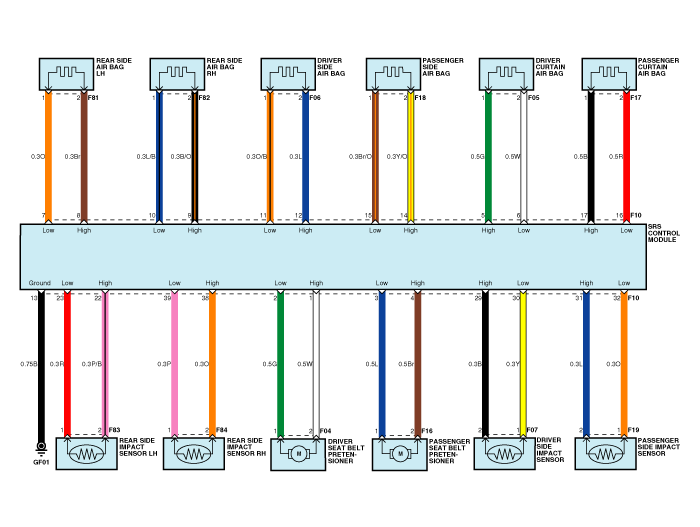

| Circuit Diagram (3) |

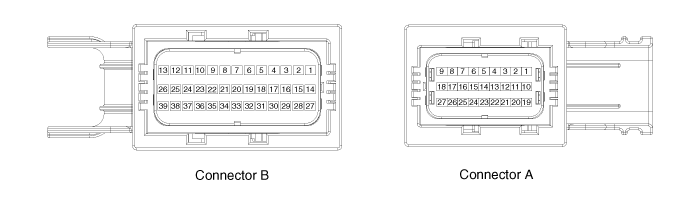

| SRSCM Connector terminal |
| Pin | Function (Connector A) | Pin | Function (Connector B) |
| 1 | Ignition | 1 | Seat belt pretensioner [Driver] High |
| 2 | Knee airbag [Driver] High | 2 | Seat belt pretensioner [Driver] Low |
| 3 | (1st stage) Driver airbag High | 3 | Seat belt pretensioner [Passenger] Low |
| 4 | (1st stage) Driver airbag Low | 4 | Seat belt pretensioner [Passenger] High |
| 5 | (1st stage) Passenger airbag Low | 5 | Curtain Airbag [Driver] High |
| 6 | (1st stage) Passenger airbag High | 6 | Curtain Airbag [Driver] Low |
| 7 | (2st stage) Driver airbag High | 7 | Rear side airbag [Driver] Low |
| 8 | (2st stage) Driver airbag Low | 8 | Rear side airbag [Driver] High |
| 9 | CAN_Low | 9 | Rear side airbag [Passenger] High |
| 10 | Shorting bar | 10 | Rear side airbag [Passenger] Low |
| 11 | Shorting bar | 11 | Front side airbag [Driver] Low |
| 12 | (2st stage) Passenger airbag Low | 12 | Front side airbag [Driver] High |
| 13 | (2st stage) Passenger airbag High | 13 | Ground |
| 14 | Front impact sensor [Passenger] High | 14 | Front side airbag [Passenger] High |
| 15 | Front impact sensor [Passenger] Low | 15 | Front side airbag [Passenger] Low |
| 16 | - | 16 | Curtain Airbag [Passenger] Low |
| 17 | Knee airbag [Driver] Low | 17 | Curtain Airbag [Passenger] High |
| 18 | CAN_High | 18 | Passenger Active vent High |
| 19 | Ground | 19 | Passenger Active vent Low |
| 20 | - | 20 | Anchor pretensioner [Passenger] Low |
| 21 | Passenger Seat Belt Reminder | 21 | Anchor pretensioner [Passenger] High |
| 22 | Crash Output | 22 | Rear side impact sensor [Driver] High |
| 23 | - | 23 | Rear side impact sensor [Driver] Low |
| 24 | Front impact sensor [Driver] High | 24 | Pressure side impect sensor [Passenger] High |
| 25 | Front impact sensor [Driver] Low | 25 | Pressure side impect sensor [Passenger] Low |
| 26 | - | 26 | Seat belt buckle switch [Passenger] |
| 27 | Telltale OFF Lamp | 27 | Pressure side impect sensor [Driver] High |
| 28 | Pressure side impect sensor [Driver] Low | ||
| 29 | Front side impact sensor [Driver] High | ||
| 30 | Front side impact sensor [Driver] Low | ||
| | 31 | Front side impact sensor [Passenger] High | |
| | 32 | Front side impact sensor [Passenger] Low | |
| 33 | - | ||
| | 34 | - | |
| ? | ? | 35 | Seat belt buckle switch [Driver] |
| ? | ? | 36 | - |
| ? | ? | 37 | - |
| ? | ? | 38 | Rear side impact sensor [Passenger] High |
| 39 | Rear side impact sensor [Passenger] Low |
