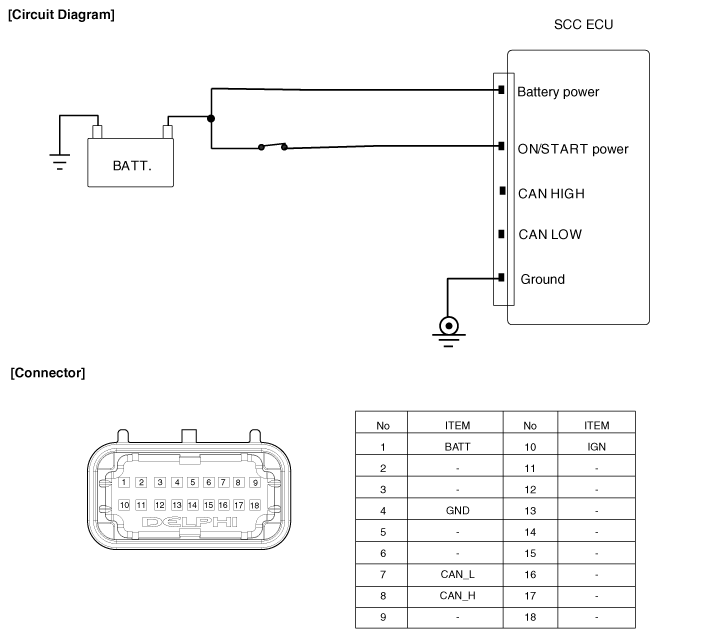

Hyundai Azera: Smart Cruise Control Unit Schematic Diagrams

Description and Operation

Description The smart cruise control system allows a driver to program the vehicle to control the speed and following distance detecting the vehicle ahead without depressing the brake pedal and ...

Smart Cruise Control Unit Repair procedures

Removal 1. Remove the bumper. (Refer to Body - "Front Bumper Cover") 2. Loosen the bolts and nuts and then remove the smart cruise control unit assembly (A) from the vehicle. 3. Disconn ...
