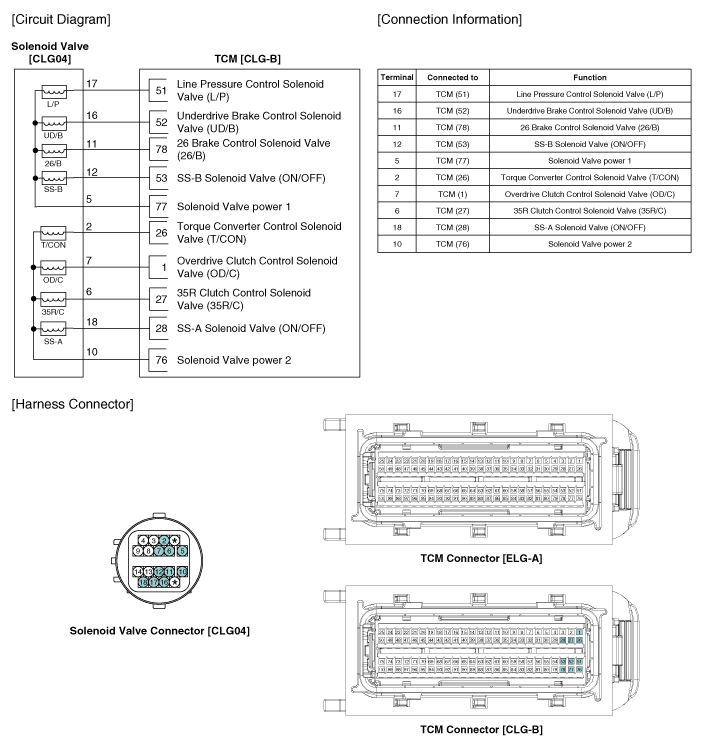

Hyundai Azera: 26 Brake Control Solenoid Valve(26/B_VFS) Schematic Diagrams

26 Brake Control Solenoid Valve(26/B_VFS) Specifications

Specifications Direct control VFS[26/B] ? Control type : Normal low type Control Pressure [kpa (kgf/cm?, psi)] 9.81 ~ 500.14 (0.1 ~ 5.1, 1.42 ~ 72.54)Current value(mA)50~850 Internal resi ...

26 Brake Control Solenoid Valve(26/B_VFS) Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the ...
