| Inspection |
| 1. |
The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator. |
| 2. |

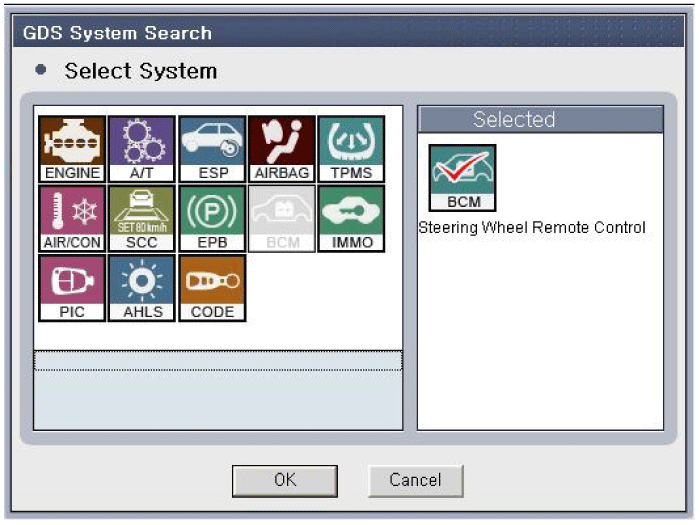

To diagnose the SWRC function, select the menu of model and body control module
|
| 3. |

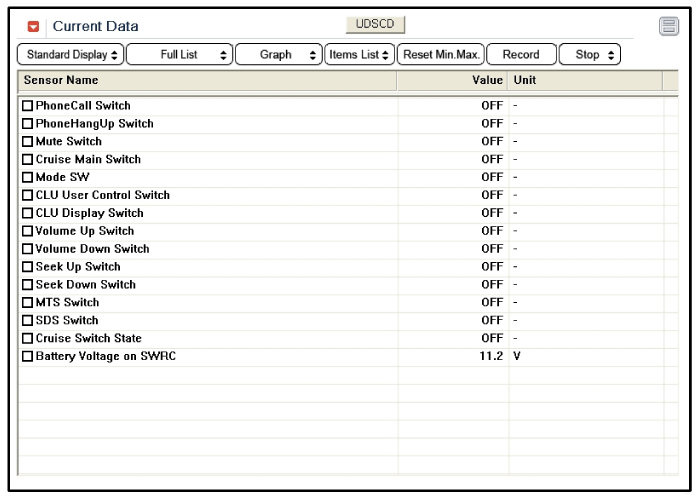

To consult the present input/output value of SWRC, "Current DATA".
|
| Removal |
| 1. |
Remove the driver airbag module.
|
| 2. |
Remove the steering wheel.
|
| 3. |
Remove the steering wheel cover (A) after loosening the screws.
|
| 4. |
Remove the steering wheel remote control switch connector (A).
[LH - AVN/Handsfree]
[RH - Cruise]
|
| 5. |
Remove the steering wheel remote control switch (A) after loosening the mounting screws.
|
| Installation |
| 1. |
Reassemble the steering wheel remote control switch. |
| 2. |
Reassemble the steering wheel cover. |
| 3. |
Reassemble the steering wheel. |
| 4. |
Reassemble the steering wheel remote control switch and airbag connector.
|
| 5. |
Reassemble the driver airbag module. |
