Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body (Interior and Exterior) / Floor Console / Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body (Interior and Exterior) / Floor Console / Components and Components Location
| Components |

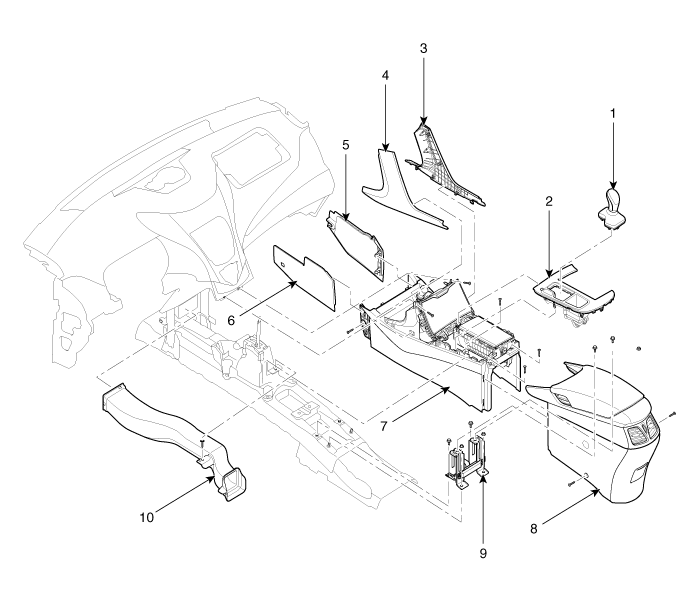

| 1. Gear knob & Gear boots 2. Console upper tray complete 3. Center facia side garnish [RH] 4. Center facia side garnish [LH] 5. Console extension cover [RH] | 6. Console extension cover [LH] 7. Console front complete assembly 8. Console rear complete assembly 9. Console rear mounting bracket assembly 10. Airvent duct assembly |
Floor Console
...
Floor Console Assembly Components and Components Location
Component Location
[Rear]
1. Console rear complete assembly
[Front]
1. Console front complete assembly
...
