| Components |

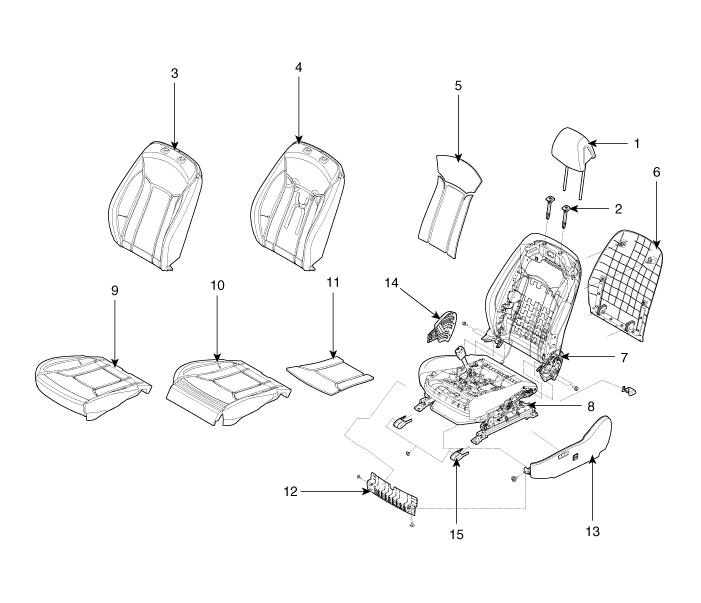

| 1. Headrest 2. Headrest guide 3. Front seat back cover 4. Front seat back pad 5. Front seat back warmer | 6. Front seat back board 7. Front seat back frame assembly 8. Front seat cushion frame assembly 9. Front seat cushion cover 10. Front seat cushion pad | 11. Front seat cushion warmer 12. Front seat shield front cover 13. Front seat shield outer cover 14. Front seat shield inner cover 15. Foot mounting cover |
Front Seat
...
Front Seat Assembly Components and Components Location
Component Location
1. Front seat assembly
...
