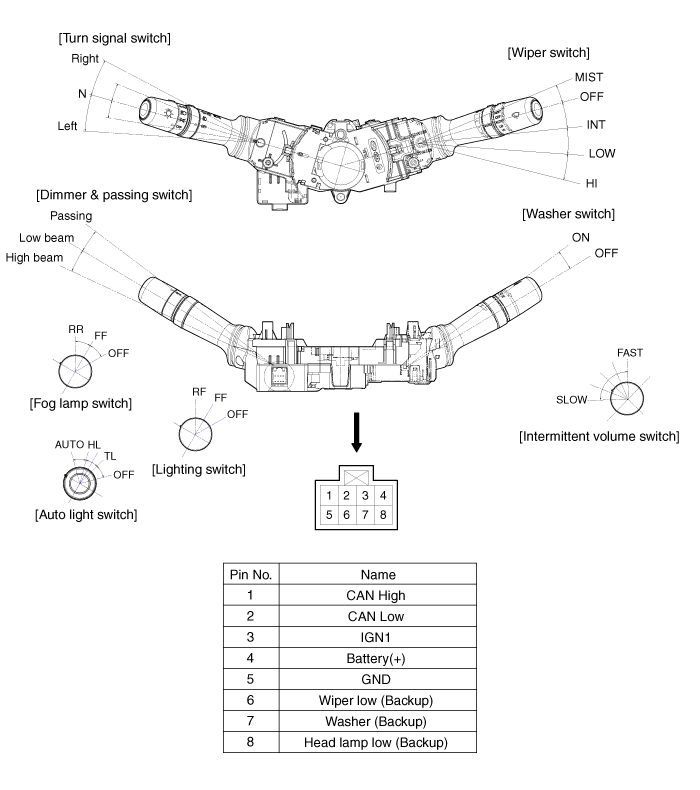

| Component (1) |

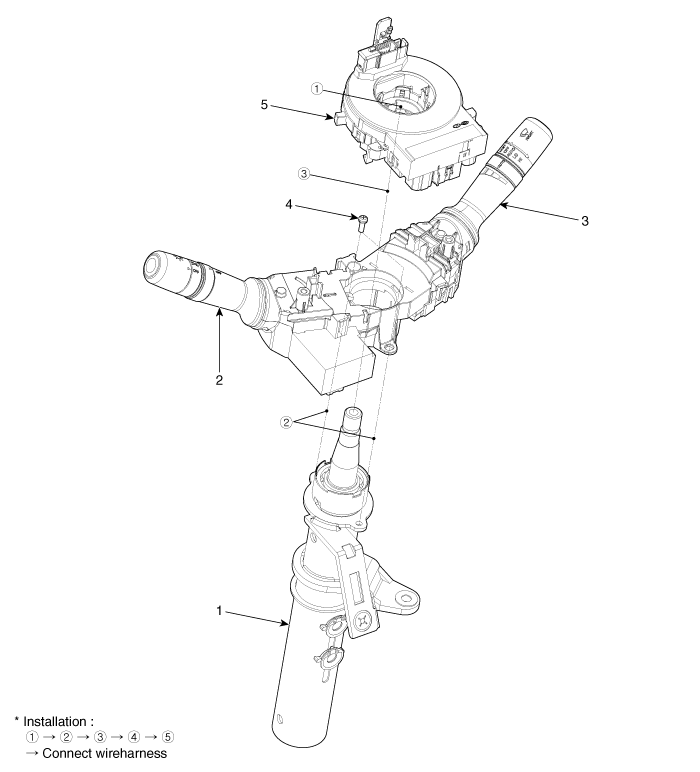

| 1. Steering column 2. Lighting switch 3. Wiper switch | 4. Screw 5. Clock spring |
| Component (2) |
Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating temperature range-30°C ~ +80°C (-22 ~ +176°F)Rated loadLighting switch0.4A (Relay load)Wiper switch0.2A (Relay load)Washer switch ...
Description and Operation
Description
Communication network diagram
AbbreviationExplanationC_CANChassis Controller Area NetworkB_CANBody Controller Area NetworkMM_CANMulti media Controller Area NetworkSMKSmart Key ECUD ...
