| Component Location |

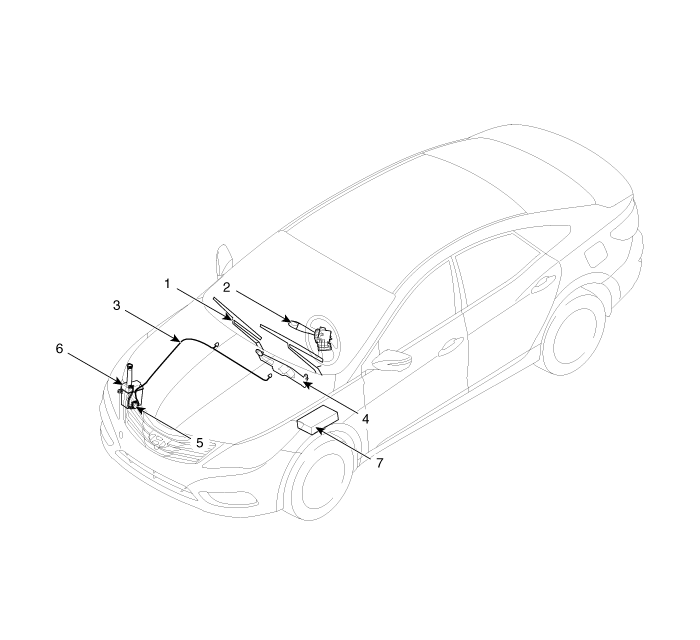

| 1. Windshield wiper arm & blade 2. Wiper & washer switch 3. Windshield washer hose 4. Windshield wiper motor & linkage | 5. Washer motor 6. Washer reservoir 7. Wiper relay (Engine room relay box) |
Windshield Wiper-Washer Switch Repair procedures
Inspection
1.
The windshield wiper / washer switch inputs can be checked using the GDS.
2.
To check the input value of windshield wiper/washer switch, select option "MFSW".
3.
To consult t ...
