| Components |

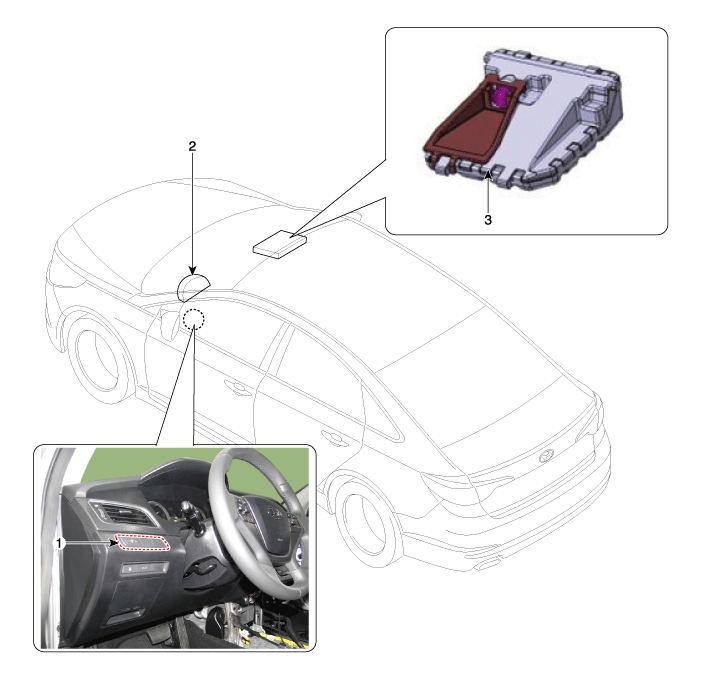

| 1. LDWS ON/OFF switch 2. Instrument cluster | 3. LDWS unit |
Description and Operation
Description
Block Diagram
LDWS is composed of below units
NoItemFunctionPosition1LDWS UNIT
1.
Lane Departure Warning System (LDWS) : Detects drive lane in
front and engages warning function i ...
