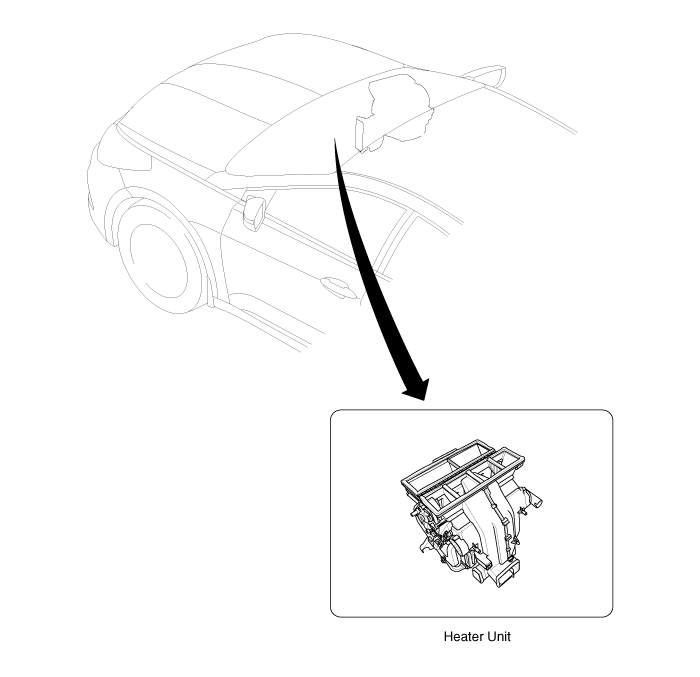

| Component Location |
| Components |

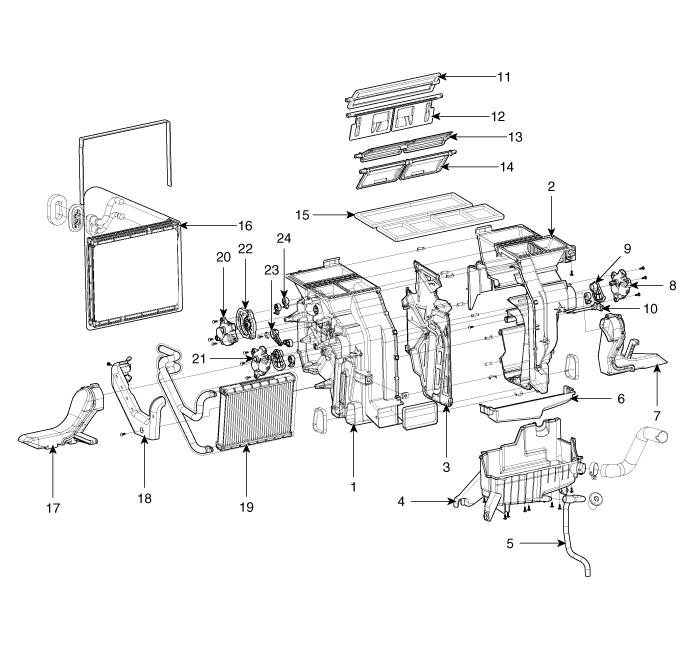

| 1. Heater Case (LH) 2. Heater Case (RH) 3. Separator 4. Heater Case (Lower) 5. Drain Hose 6. Insulation | 7.Shower Duct (RH) 8. Temp Actuator(PA) 9. Temp Door Cam 10. Evaporator Sensor 11. Def Door 12. Vent Door | 13. Floor Door 14. Temp Door 15. Duct Seal 16. Evaporator Core 17. Shower Duct (LH) 18. Heater Core Cover | 19. Heater Core 20. Mode Actuator 21. Temp Actuator (DR) 22. Mode Cam 23. Dual Temp Door Arm 24. Vent Arm |
Heater
...
Heater Unit Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Recover the refrigerant with a recovery/ recycling/ charging station.
3.
When the engine is cool, drain the engine coola ...
