Hyundai Azera: Connecting a Device
Press the
key
Select [Phone]

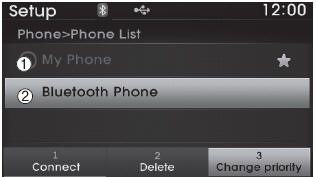

Select [Paired Phone List]

1) Connected Phone : Device that is currently connected
2) Paired Phone : Device that is paired but not connected
From the paired phone list, select the device you want to connect and Select
the
button.
