Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Brake System / Parking Brake System / Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Brake System / Parking Brake System / Components and Components Location

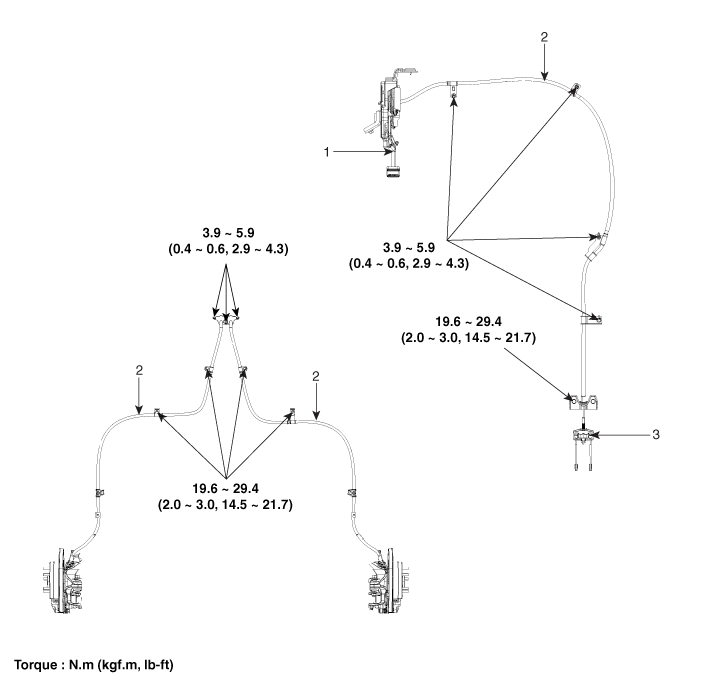

| Components (1) |
| 1. Parking brake pedal 2. Parking brake cable | 3. Equalizer assembly |

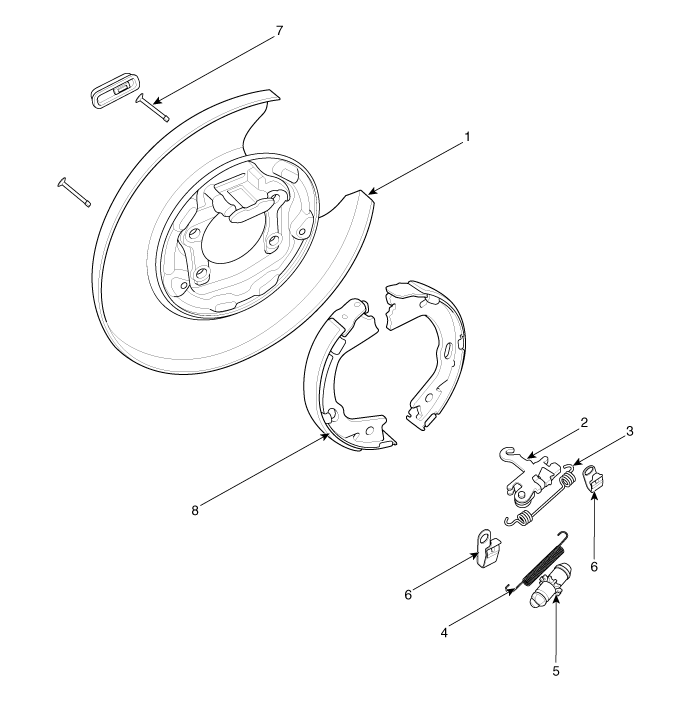

| Components (2) |
| 1. Backing plate 2. Operating lever 3. Upper spring 4. Lower spring | 5. Adjuster 6. Shoe hold down spring 7. Shoe hold down pin 8. Shoe |
Parking Brake Assembly Repair procedures
Removal
Parking Brake Shoe
1.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the rear tire and wheel.
3.
Remove the rear brake caliper and Rear disc brake.
(Refer ...
