| Component Location |

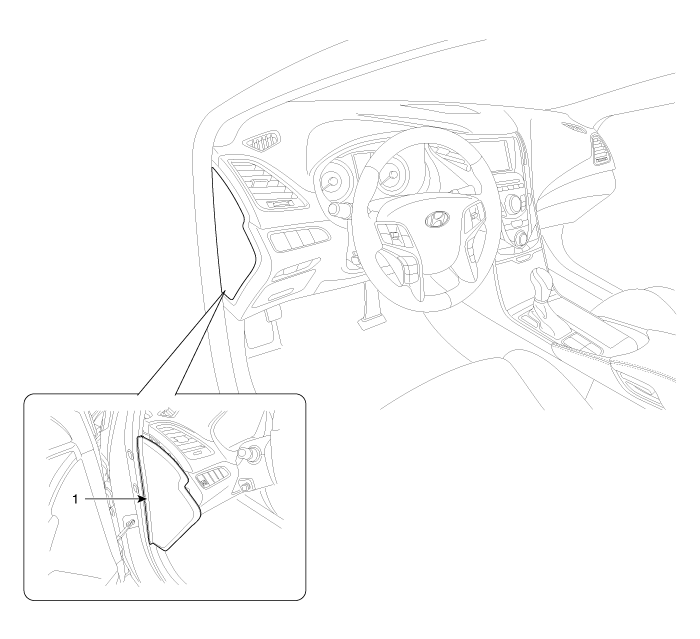

| [LH] |
| 1. Crash pad side cover [LH] |

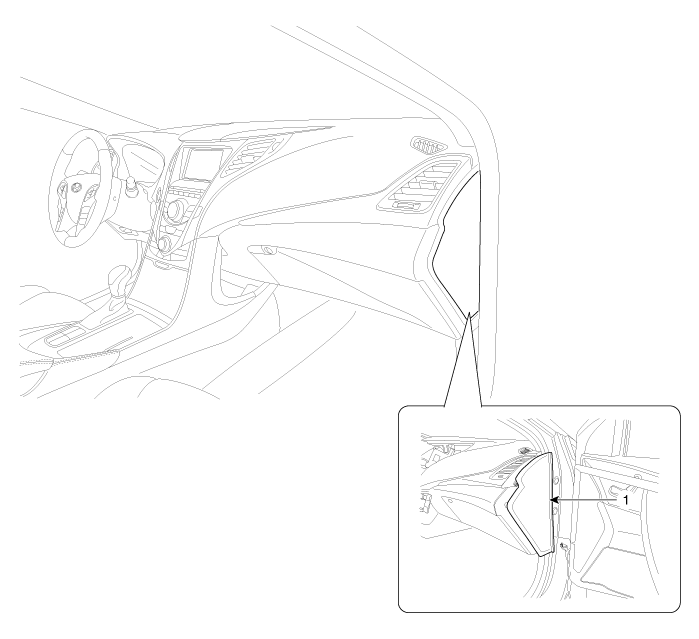

| [RH] |
| 1. Crash pad side cover [RH] |
Steering Column Shroud Panel Repair procedures
Replacement
•
When prying with a flat-tip screwdriver, wrap it with
protective tape, and apply protective tape around the related parts, to
prevent damage.
•
...
Crash Pad Side Cover Repair procedures
Replacement
•
When prying with a flat-tip screwdriver, wrap it with
protective tape, and apply protective tape around the related parts, to
prevent damage.
•
...
