| Components |

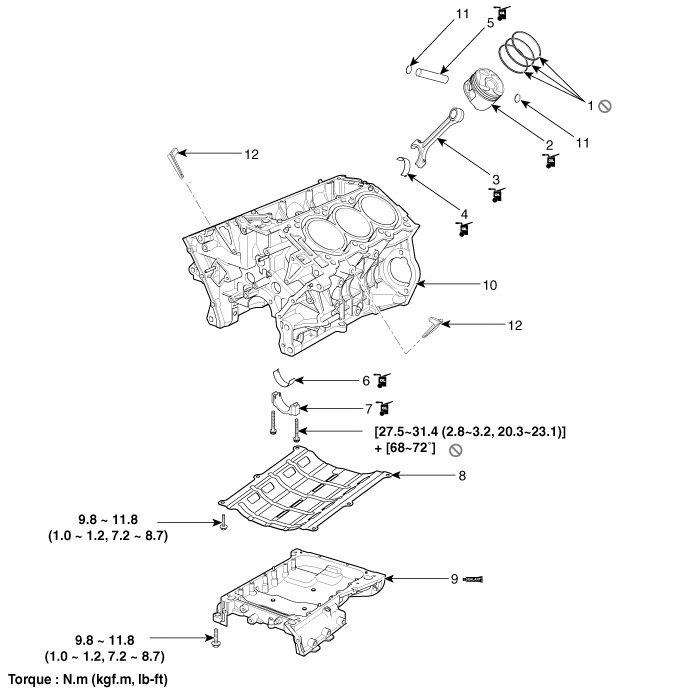

| 1. Piston ring 2. Piston 3. Connecting rod 4. Connecting rod upper bearing | 5. Piston pin 6. Connecting rod lower bearing 7. Connecting rod bearing cap 8. Baffle plate | 9. Upper oil pan 10. Cylinder block 11. Snap ring 12. Water jacket separator |

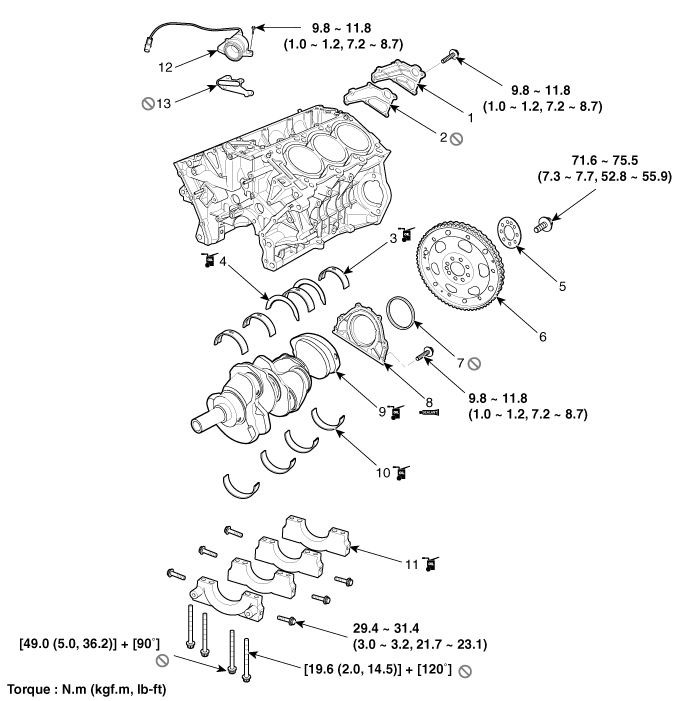

| 1. Oil drain cover 2. Oil drain cover gasket 3. Crank shaft upper bearing 4. Thrust bearing | 5. Adapter plate 6. Drive plate 7. Rear oil seal 8. Rear oil seal case | 9. Crankshaft 10. Crankshaft lower bearing 11. Main bearing cap 12. Oil cover 13. Oil cover gasket |
