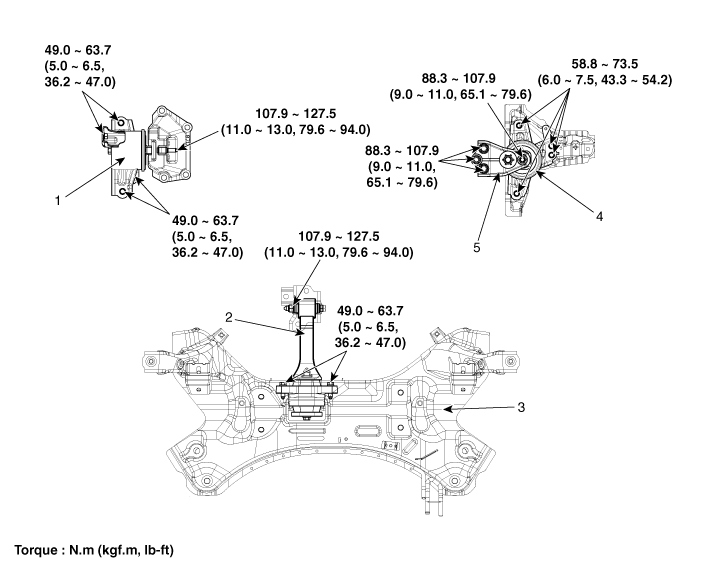

| Components |
| 1. Transaxle mounting bracket 2. Roll road bracket 3. Sub frame | 4. Engine mounting bracket 5. Engine mounting support bracket |
Engine Room Under Cover Repair procedures
Removal and Installation
1.
Remove the engine room under cover (A) and (B).
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
•
When removing t ...
Engine Mounting Repair procedures
Removal and Installation
[Engine mounting support bracket]
1.
Install the jack to the edge of upper oil pan (A) to support the engine.
Insert the rubber block between jac ...
