Hyundai Azera: Cylinder Head Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and Components Location
| Components |

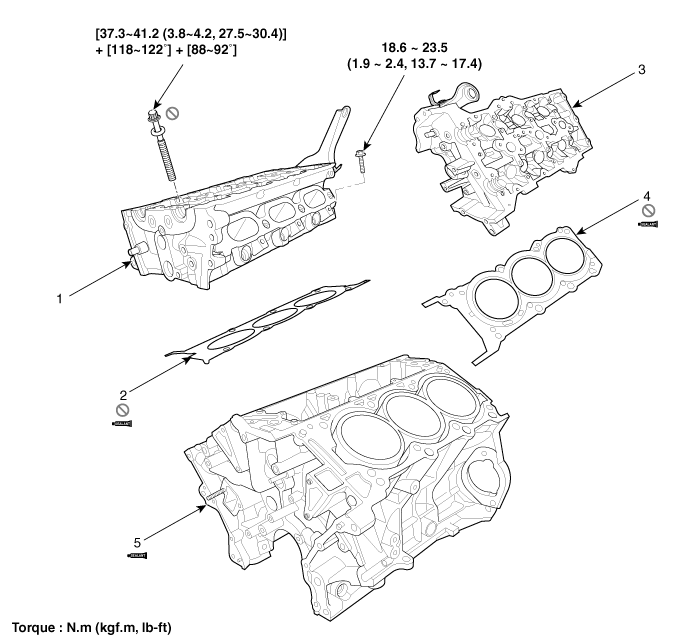

| 1. RH Cylinder head 2. RH Cylinder head gasket 3. LH Cylinder head | 4. LH Cylinder head gasket 5. Cylinder block |

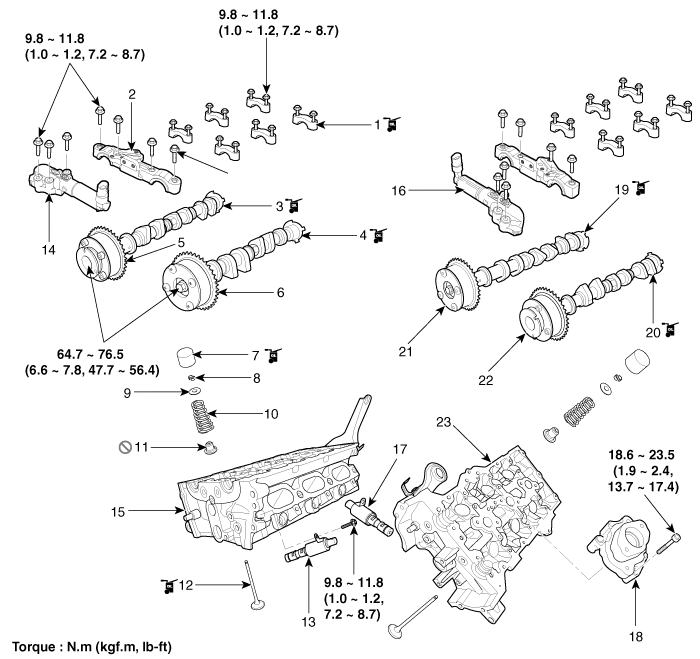

| 1. Camshaft bearing cap 2. Camshaft thrust bearing cap 3. RH Exhaust camshaft 4. RH Intake camshaft 5. RH Exhaust CVVT assembly 6. RH Intake CVVT assembly 7. Mechanical lash adjuster (MLA) 8. Retainer lock | 9. Retainer 10. Valve spring 11. Valve stem seal 12. Valve 13. RH Intake camshaft OCV 14. RH Exhaust camshaft OCV 15. RH Cylinder head 16. LH Exhaust camshaft OCV | 17. LH Intake camshaft OCV 18. Fuel pump bracket 19. LH Intake camshaft 20. LH Exhaust camshaft 21. LH Intake CVVT assembly 22. LH Intake CVVT assembly 23. LH Cylinder head |
Camshaft Repair procedures
Removal
[RH]
1.
Remove the RH bank timing chain.
(Refer to Timing System - "Timing Chain")
2.
Remove the RH exhaust CVVT oil control valve.
(Refer to Fuel System - "CVVT Oil Control Valv ...
Cylinder Head Repair procedures
Removal
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damaging the cylinder head, wait until the engine
coolant temperature drops below no ...
