Hyundai Azera: Drive Belt Tensioner Components and Components Location - Timing System - Engine Mechanical System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Drive Belt Tensioner Components and Components Location

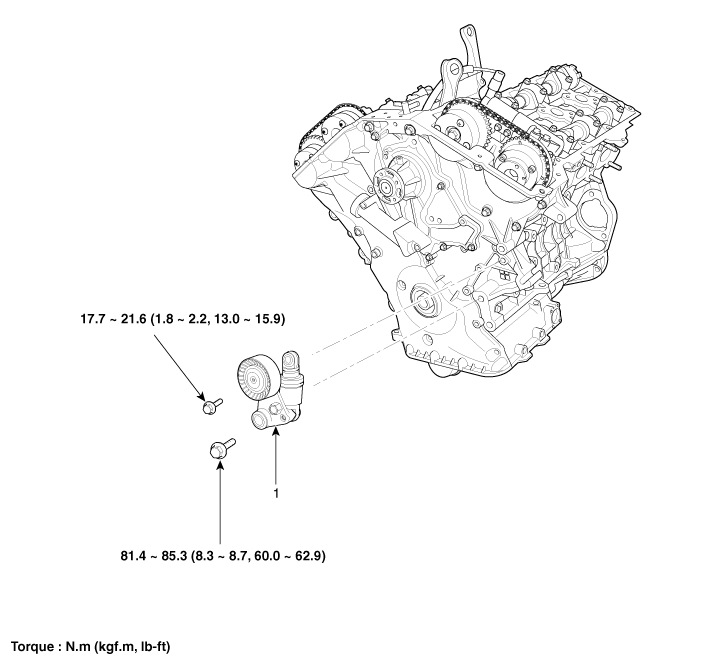

Components

1. Drive belt tensioner

Idler Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt idler (A). Tightening torque : 52.9 ~ 57.9N.m (5.4 ~ 5.9kgf.m, 39.1 ~ ...

Drive Belt Tensioner Repair procedures
Removal and Installation 1. Remove the drive belt idler. (Refer to Timing System - "Idler") 2. Remove the drive belt auto tensioner (A). Tightening torque Bolt (B) : 81.4 ~ 85.3N.m (8.3 ...
