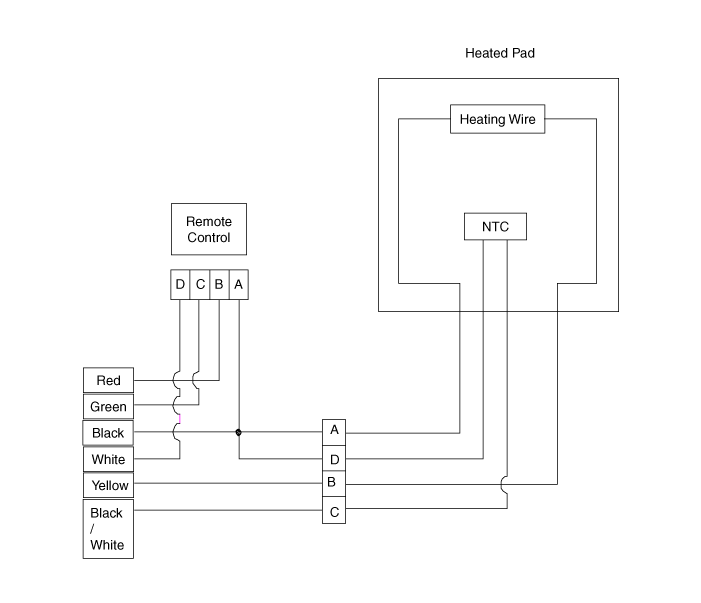

System Circuit Diagram |

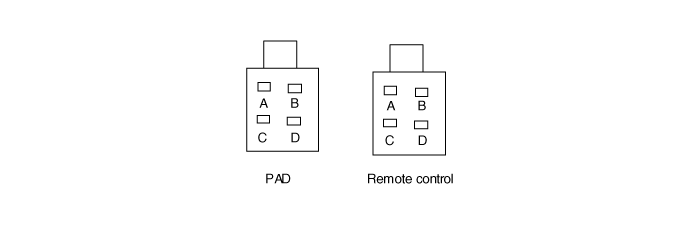

Housing | Pin | Function | Wire color |
Pad | A | GND | Back |
B | HEATER | Yellow | |
C | NTC+ | Back / Yellow | |
D | NTC- | Back | |
Remote control | A | GND | Back |
B | BAT | Red | |
C | LED | Green | |
D | SWITCH | White |
