Hyundai Azera: Instrument cluster
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Features of your vehicle / Instrument cluster

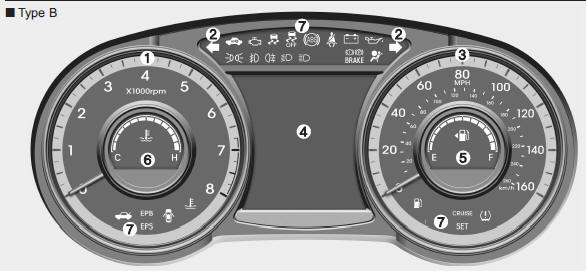

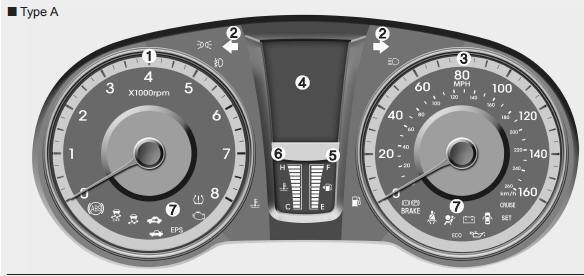

1. Tachometer
2. Turn signal indicators
3. Speedometer
4. LCD display
5. Fuel gauge
6. Engine coolant temperature gauge
7.Warning and indicator lights
Reverse parking aid function (if equipped)
While the vehicle is moving rearward, the outside rearview mirror(s) will move
downward to aid reverse parking. According to the position of the outside rearview
mirror switch (1), the outside r ...
Instrument panel illumination
The instrument panel illumination intensity can be adjusted as follows:
Ignition switch in the ON position
Pushing the control switch up or down
The illumination intensity is shown on the ...
